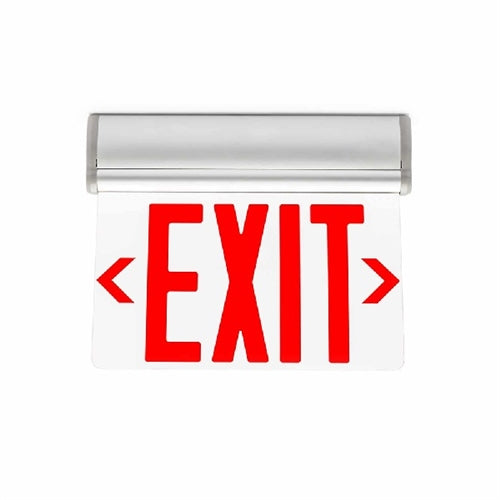

Isolite EUG-AC-R-1C-MTEB 2W Universal Surface Mount Edge-lit LED Exit Sign, AC Only, Red Illlumination, Single Face, Clear Background Face, Top/End/Back Mount

Isolite EUG-AC-R-1C-MTEB 2W Universal Surface Mount Edge-lit LED Exit Sign, AC Only, Red Illlumination, Single Face, Clear Background Face, Top/End/Back Mount

Price: $148.50
Price: $148.50

MODEL: Isolite-EUG-249
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY FEATURES
  • Super-bright LEDs with long life expectancy.
  • Suitable for damp locations.

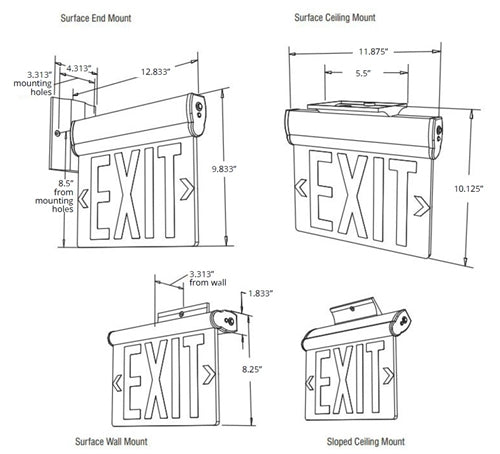

  • Unique pivoting housing suitable for ceiling, wall, or end mount applications.
  • The energy consumption is less than 2 watts of nominal power.
  • Charge rate/power "ON" LED indicator light and push-to-test switch are provided for mandated code compliance testing.
  • Maintenance free nickel cadmium batteries with long life expectancy.
  • Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
  • Full automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours while reducing overcharge and improving the life of the battery.
  • Brownout detection ensures emergency operation during periods of low line voltage.
  • 120/277 VAC with field selectable inputs.

PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
  • Attractive, low profile satin extruded aluminum with matching gray end-caps.
  • Clear acrylic, edge-lit lens is provided for single faced signs while mirrored background is standard for double faced signs.
ARROWS
  • NFPA-type, universal field installable, self-adhesive chevrons.
LETTERS
  • 6" high; 0.75" stroke
TEMPERATURE RATING
  • From 50°F to 104°F
APPROVALS
  • UL 924
  • CEC Title 20 Compliant
  • NFPA 101 Life Safety Code
  • NEC NFPA 70
  • OSHA
WARRANTY
  • Isolite offers a 5-year limited warranty.
  • For further details, refer to General
  • Warranty and Obligations in the Isolite manual or on our website.
