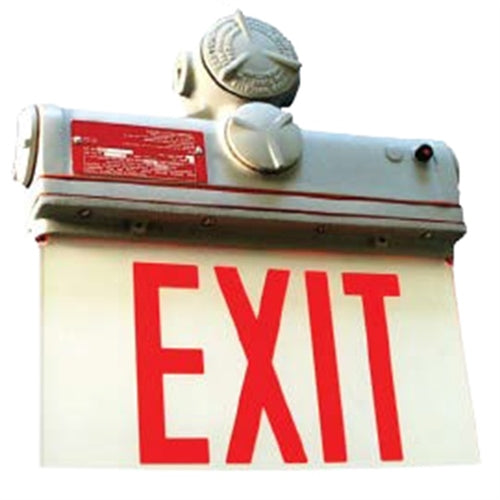

Isolite EXP-AC-G-2W-ME-AB 2.3W Explosion Proof LED Exit Sign, 120-277V, Green Illumination, Double Face, White Background, End Mount / Side Mount, Double Arrow
Isolite EXP-AC-G-2W-ME-AB 2.3W Explosion Proof LED Exit Sign, 120-277V, Green Illumination, Double Face, White Background, End Mount / Side Mount, Double Arrow
Regular price
Price:
$2,392.50
Regular price
Price:
Sale price
$2,392.50
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY FEATURES
CONSTRUCTION
- Illumination 4X brighter than UL 924 requirement with super-bright, long-life LEDs that have a 25+ year life expectancy.
- Premium long-life, high-temperature fused nickel cadmium battery with standard UL listed 3-hour run time.
- Standard battery diagnostic system monitors battery status, detects cell failure, and issues an alert when there’s reduced capacity, indicating the need to replace the battery.
- Line-latch prevents unnecessary discharge of battery during installation. Loads will not illuminate until after application of utility power.
- Brownout detection ensures emergency operation during periods of low line voltage.
- Sealed external momentary test switch and dual diagnostic LED indicator displays AC presence and Hi-Charge status.
- Self-Test/Self-Diagnostic monitoring available.
- Zero current low-voltage disconnect used to prevent battery from being overly discharged.
- Unique electronic driver circuit provides current control and protection, ensuring optimum LED efficiency and life.
- 120/277 VAC with field selectable inputs.
CONSTRUCTION
- Precision die-cast aluminum housing with a flawless, laser-formed acrylic legend.
- AC models: Red 1.5W; Green 2.3W
- EM models: Red 2.5W; Green 3.0W
- 6†high; 0.75†stroke
- NFPA-type, universal field installable, selfadhesive chevrons.
- Green: From 50°F to 104°F
- Red: From 50°F to 131°F
- Class I, Div 1 Groups C & D
- Class I, Div 2 Groups A, B, C & D
- Class II, Div 1 Groups E, F & G
- Class III, Div 1
- Class I, Zone 1, Groups IIA, IIB
- Class I, Zone 2, Groups IIA, IIB + H2 & IIC
- Temperature Class (T-Rating) - T6
- UL 924
- NFPA 101 Life Safety Code
- NFPA 70-NEC
- OSHA
- IP65
- CEC Title 20 Compliant
- UL 1598A -- Marine Outside Type
- UL 844
- BAA Compliant
- Isolite offers a 5-year limited warranty.
