Home > Isolite > Isolite TL2-AC-R-1-BK-MPA 2W Aluminum Thin Line Die-Cast LED Exit Sign, AC Only, Red Letters, Single Face, Black Frame, 12" Pendant Mount

  • Isolite TL2-AC-R-1-BK-MPA 2W Aluminum Thin Line Die-Cast LED Exit Sign, AC Only, Red Letters, Single Face, Black Frame, 12" Pendant Mount
  • Isolite TL2-AC-R-1-BK-MPA 2W Aluminum Thin Line Die-Cast LED Exit Sign, AC Only, Red Letters, Single Face, Black Frame, 12" Pendant Mount
1 2

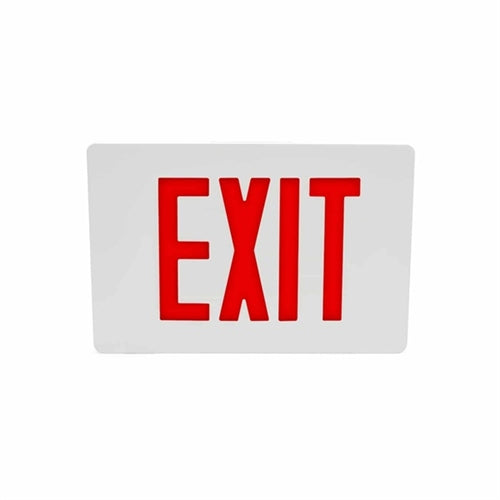

Isolite TL2-AC-R-1-BK-MPA 2W Aluminum Thin Line Die-Cast LED Exit Sign, AC Only, Red Letters, Single Face, Black Frame, 12" Pendant Mount

Isolite TL2-AC-R-1-BK-MPA 2W Aluminum Thin Line Die-Cast LED Exit Sign, AC Only, Red Letters, Single Face, Black Frame, 12" Pendant Mount

Price: $422.40
Price: $422.40

MODEL: Isolite-TL2-296
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
  • Injection molded internal cavity reflector provides ease of installation and maintenance together with perfectly even legend illumination.
  • Two piece, heavy-duty walls are constructed from die cast aluminum alloy.
  • Removable front stencil face includes overlapping light seal.

LETTERS
  • 6.0” high; 0.75” stroke

ARROWS
  • NFPA type, universal field selectable chevrons.

INPUT POWER
  • AC models: 2W
  • EM models: 2.4W

WEIGHT
  • AC: 8 lbs
  • EM: 8 lbs

TEMPERATURE RATING
  • From 50°F to 104°F (10ºC to 40ºC)

APPROVALS
  • UL 924
  • CSA C22.2 No. 141-10
  • CEC Title 20 Compliant
  • UL 924 Damp Location
  • NFPA 101 Life Safety Code
  • NFPA 70-NEC
  • OSHA
  • BAA Compliant

WARRANTY
  • Isolite offers a 5-year limited warranty.
