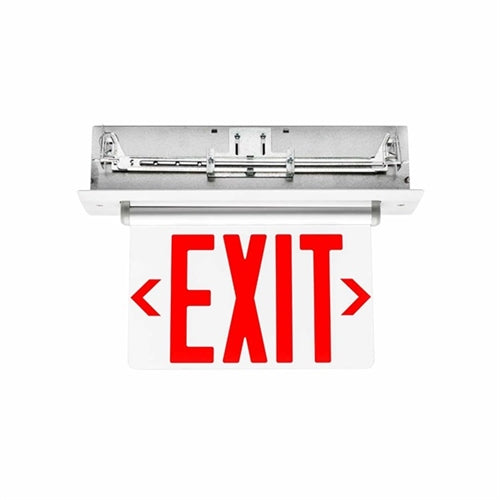

Isolite UEL-EM-R8-1C2M-MTEBR Universal Recessed Edge-Lit LED Exit Sign, Ni-Cad Battery Backup, 8" Red Letter, Single Face/Clear Background & Double Mirrored Background, Universal Mount

Isolite UEL-EM-R8-1C2M-MTEBR Universal Recessed Edge-Lit LED Exit Sign, Ni-Cad Battery Backup, 8" Red Letter, Single Face/Clear Background & Double Mirrored Background, Universal Mount


Price: $244.20
Price: $244.20

MODEL: Isolite-UEL-268
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
  • Attractive, low profile satin extruded aluminum
  • Gray injection molded end caps and canopy
  • Formed sheet steel recessed backbox

INPUT POWER
  • Standard
  • AC models: Red <2W; Green <3W
  • EM models: Red <2.5W; Green 3W
  • NYC Approved
  • AC models: Red 3W
  • EM models: Red 4.1W

LETTERS
  • Standard: 6” high; 0.75” stroke
  • NYC Approved: 8” high; 1.0” stroke ARROWS
  • Universal field installable, self-adhesive chevrons

TEMPERATURE RATING
  • From 50°F to 104°F (10ºC to 40ºC) APPROVALS
  • UL 924
  • CEC Title 20 Compliant
  • NFPA 101 Life Safety Code
  • NEC
  • OSHA

WARRANTY
  • Isolite offers a 5-year limited warranty.
