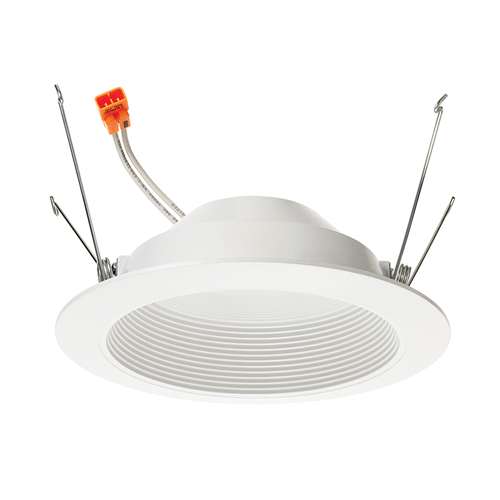

Juno 5RLD G2 09LM 30K 90CRI 120 FRPC WWH Recessed Lighting Downlight 5" LED Retrofit Baffle Trim 3000K, 90 CRI, 900 Lumens, White Finish

PRODUCT DESCRIPTION

• Energy efficient LED retrofit module fits into standard 5" IC or non-IC recessed housings
• Replaces 65W incandescent lamp, producing over 675 lumens
• Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers
• LED retrofit module is designed to provide 36,000 hours of life
• 5 year warranty

PRODUCT SPECIFICATIONS

Compatible Housings

The 5RLD retrofit module is compatible with most 5" recessed housings measuring at least 4" high with an inside diameter between 5" and 5-3/4" . Removal of the housing socket plate or socket mounting bracket may be required in order for the trim to fit properly

• Juno housings: IC20, IC25 and TC20 Series
• Juno quick-connect LED housings: IC20-LEDT24 and IC20R-LEDT24
• VuLite housings: V5IC and V5TC Series
• Lithonia housings: L5 Series
• Halo housings: H5 Series
• Thomas housings: PS5 and CR5 Series
• Capri housings: QL5 Series

LED Retrofit Downlight Trim

• Cast aluminum trim with white baffle and flange. All-in-one design where LED light engine mounts directly to trim for ease of installation into existing 5" recessed housings with medium base sockets
• Provided with push-in friction springs.


LED Light Engine

• LEDs mounted directly to aluminum housing designed to provide superior thermal management and ensure long life
• 2700K, 3000K, and 3500K LED color temperature
• 90 CRI minimum
• Accommodates 120 volts AC at 60Hz
• Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers
• For a list of compatible dimmers, see JUNORETROBASICS-DIM


Electrical Connections

• Trim features quick connect plug installed as standard for installation into IC20-LEDT24 and IC20R-LEDT24 housings with mating connector
• a medium base socket adapter whip sold separately.

Trim

• Cast aluminum baffle trim with white finish
• Diffusing lens conceals the LEDs from direct view and provides uniform aperture
  luminance.


Life Rated for 36,000 hours at 70% lumen maintenance.

Labels

• ENERGY STAR Qualified
• Certified to the high efficacy requirements of California T24
• UL and cUL classified for use with most standard UL listed 5" recessed incandescent housings and Juno IC20-LEDT24 and IC20R-LEDT24; see below for specific compatibility requirements
• Damp location
• Suitable for wet locations (indoor covered ceilings).


Testing All reports are based on published industry procedures; field performance may differ from laboratory performance.
