Juno 5RLD G3 09LM 35K 90CRI 120 FRPC WWH Recessed Lighting Downlight 5" LED Retrofit Baffle Trim 3500K, 90 CRI, 900 Lumens, White Finish, Less Medium Base Socket Adapter

PRODUCT DESCRIPTION

• Energy efficient LED retrofit module fits into standard 5" IC or non-IC recessed housings
• Replaces 75W incandescent lamp, producing over 950 lumens
• Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers
• LED retrofit module is designed to provide 36,000 hours of life
• 5 year warranty

PRODUCT SPECIFICATIONS

Compatible Housings

The 5RLD retrofit module is compatible with most 5" recessed housings measuring at least 4" high with an inside diameter between 5" and 5-3/4" . Removal of the housing socket plate or socket mounting bracket may be required in order for the trim to fit properly

• Juno housings: IC20, IC25 and TC20 Series
• Juno quick-connect LED housings: IC20-LEDT24 and IC20R-LEDT24
• VuLite housings: V5IC and V5TC Series
• Lithonia housings: L5 Series
• Halo housings: H5 Series
• Thomas housings: PS5 and CR5 Series
• Capri housings: QL5 Series

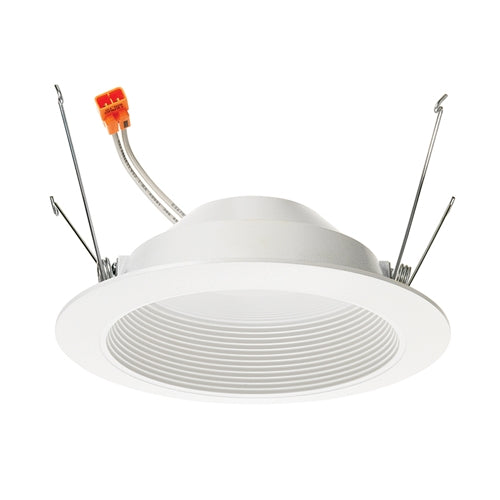

LED Retrofit Downlight Trim

• Cast aluminum trim with white baffle and flange. All-in-one design where LED light engine mounts directly to trim for ease of installation into existing 5" recessed housings with medium base sockets
• Provided with push-in friction springs.


LED Light Engine

• LEDs mounted directly to aluminum housing designed to provide superior thermal management and ensure long life
• 2700K, 3000K, and 3500K LED color temperature
• 90 CRI minimum
• Accommodates 120 volts AC at 60Hz
• Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers
• For a list of compatible dimmers, see JUNORETROBASICS-DIM


Electrical Connections

• Trim features quick connect plug installed as standard for installation into IC20-LEDT24 and IC20R-LEDT24 housings with mating connector
• a medium base socket adapter whip sold separately.

Trim

• Cast aluminum baffle trim with white finish
• Diffusing lens conceals the LEDs from direct view and provides uniform aperture
  luminance.


Life Rated for 36,000 hours at 70% lumen maintenance.

Labels

• ENERGY STAR Qualified
• Certified to the high efficacy requirements of California T24
• UL and cUL classified for use with most standard UL listed 5" recessed incandescent housings and Juno IC20-LEDT24 and IC20R-LEDT24; see below for specific compatibility requirements
• Damp location
• Suitable for wet locations (indoor covered ceilings).
