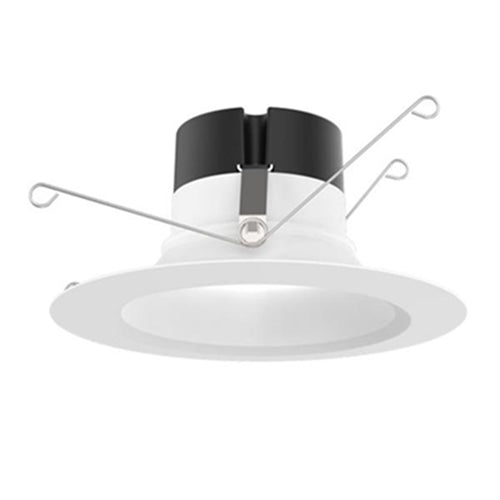

Juno 65SEMW HL SWW5 90CRI M6 14.5W 5"/6" Switchable White LED Trim Kit, Smooth Trim, 1200 Lumens, Switchable CCT 2700K-5000K, 90 CRI, 120V, White

PRODUCT FAMILY SPECIFICATIONS
DOWNLIGHT LED TRIM KIT:
Aluminum spun reflector with deep regression for reduced glare
Inner reflector cone funnels light through the pressed-in diffused lens
All-in-one design where LED light engine mounts directly to trim for ease of installation into existing 5" or 6" recessed housings with medium base sockets
Provided with torsion springs.

LED LIGHT ENGINE:
LEDs are mounted directly to aluminum housing providing superior thermal management to ensure long life
Switchable white LED color temperature technology offers 2700K, 3000K, 3500K, 4000K, 5000K all in one trim
90 CRI minimum
Accommodates 120 volts AC at 60Hz
Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers
For a list of compatible dimmers, see JUNOESERIES-DIM.

OPTICAL SYSTEM:
Diffused lens at end of mixing chamber to provide even light distribution for general illumination
900L is equivalent to 75W BR30 lamp
1200L is equivalent to 120W lamp.

ELECTRICAL CONNECTIONS:
Trim features quick connect plug installed as standard for installation into Juno quick connect housings with mating connector
Trim ships with a medium base socket adapter whip for installation into 5" or 6" incandescent housings with medium base sockets.

DESIGNER COLOR FINISH TRIM INSERTS:
(sold separately) Color Finish Trim inserts are accessory rings that attach to the 65BE/65SE downlight for a permanent finish.
Trim styles include baffle or smooth in the following finishes:

• Black
• Brush Nickel
• Oil-Rubbed Bronze

LIFE: Rated for 50,000 hours at 70% lumen maintenance.

LABELS:
CSA certified to US and Canadian safety standards
ENERGY STAR certified product
Suitable for wet location
Air-Loc certified in accordance with ASTM E283-2004
NOM Certified
Can be used to comply with California Title 24 Part 6 High Efficacy LED light Source Requirements
T20 Certified.

TESTING: All reports are based on published industry procedures; field performance may differ from laboratory performance.

WARRANTY: 5-year limited warranty
