Juno Recessed Lighting 6RLC-835-9-WWH Downlight 6" Downlight LED Retrofit Trim 3500K, 900 Lumens, 80 CRI, White Finish
Juno Recessed Lighting 6RLC-835-9-WWH Downlight 6" Downlight LED Retrofit Trim 3500K, 900 Lumens, 80 CRI, White Finish
Regular price
Price:
$71.66
Regular price
Price:
Sale price
$71.66
Unit price
per
MODEL: Juno-6RLC-835-9-WWH
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
COMPATIBLE HOUSINGS INCLUDE, BUT NOT LIMITED TO:
LED Downlight Retrofit Trim
- Juno housings: CV6, CH6, M6, M6-E, MX6, MX6-E, TC906, TC906H, TC920
- Indy housings: C6V, C6H, M6, A6, P6
- Halo housings: PD6 series
- Lightolier housings: 1100FTUES, 1101F2642U, S6132BU
- Capri housings: CM6-FV26/32/42
- Lithonia housings: CCR62, 6VF, 6HF, 6VH, 6VI, LF6, LP6H, LP6F, LP6
- Patent pending energy efficient LED retrofit module fits into 6” non-IC commercial recessed rough-in sections
- If installed where insulation is present, the insulation must be pulled back 3” from all sides of the retrofit installation
- Replaces 26W CFL Lamp, producing 900 lumens typical at 12.4W
- Dimmable with most standard incandescent dimmers and electronic low voltage dimmers
- LED retrofit module is designed to provide 36,000 hours of life
- 5 year warranty.

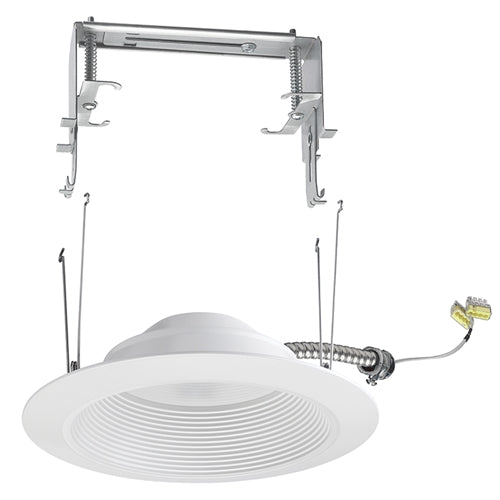

LED Downlight Retrofit Trim
- Cast aluminum trim with white baffle and flange
- All-in-one design where LED light engine is mounted directly to trim
- Provided with conduit whip and connector to mount to 1/2” trade size knockout in junction box for ease of installation into existing rough-in sections
- Provided with torsion springs.
- LEDs are mounted directly to cast aluminum housing providing superior thermal management to ensure long life
- 3500K LED color temperatures
- 80 CRI minimum
- Accommodates 120 volts AC at 60Hz
- Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers.
- Trim includes conduit whip and connector to attach directly to 1/2” trade size knockout in junction box
- All electrical connectors and hardware provided for easy installation after fluorescent socket and ballast are removed from rough-in sections.
- Cast aluminum baffle trim with white finish
- Diffusing lens conceals the LEDs from direct view and provides uniform aperture luminance.
- Rated for 36,000 hours at 70% lumen maintenance
- ENERGY STAR Qualified
- UL and cUL classified for use with most standard UL listed 6” non-IC commercial rough-in sections; see below for specific compatibility requirements
- Suitable for wet locations (indoor covered ceilings)
- Damp location
- All reports are based on published industry procedures; field performance may differ from laboratory performance.
Download PDF Spec SheetShare your knowledge of this product. Be the first to write a review »
