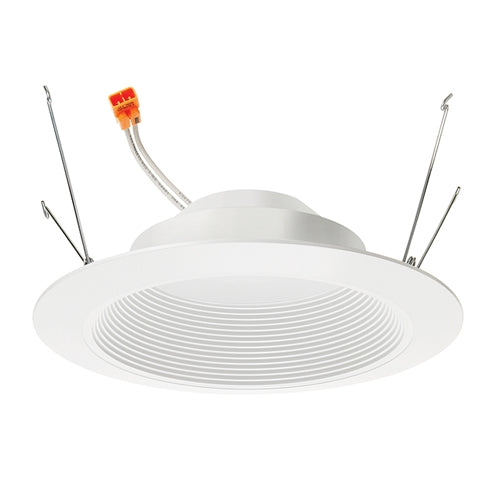

Juno 6RLD G3 07LM 27K 90CRI 120 FRPC WWH Recessed Lighting Downlight 6" LED Retrofit Baffle Trim 2700K, 90 CRI, 700 Lumens, White Finish, Less Medium Base Socket Adapter

PRODUCT DESCRIPTION

• Energy efficient LED retrofit module fits into standard 6" IC or non-IC recessed housings
• Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers
• LED retrofit module is designed to provide 36,000 hours of life
• 5 year warranty

PRODUCT SPECIFICATIONS

Compatible Housings

The 6RLD retrofit module is compatible with most 6" recessed housings measuring at least 4" high with an inside diameter between 5-3/4" and 7" . Removal of the housing socket plate or socket mounting bracket may be required in order for the trim to fit properly.

Compatible housings include, but not limited to:

• Juno housings: IC2, IC21, IC22, IC23 and TC2 Series
• Juno quick-connect LED housings: IC23-LEDT24 and IC23R-LEDT24
• VuLite housings: V6IC and V6TC Series
• Lithonia housings: L7X and LC6 Series
• Halo housings: H7 Series, H25 Series
• Thomas housings: PS1 and PS3 Series
• Capri housings: CR1, PR1, QL6 Series, P9ASIC Series

LED Downlight Retrofit Trim

• Cast aluminum trim with white baffle and flange
• All-in-one design where LED light engine mounts directly to trim for ease of installation into existing 6" recessed housings with medium base sockets
• Provided with torsion springs.


LED Light Engine

• LEDs are mounted directly to cast aluminum housing providing superior thermal management to ensure long life
• 2700K, 3000K, and 3500K LED color temperature
• 90 CRI minimum
• Accommodates 120 volts AC at 60Hz
• Dimmable with most standard incandescent, magnetic low voltage and electronic low voltage dimmers
• For a list of compatible dimmers, see JUNORETROBASICS-DIM


Electrical Connections

• Trim features quick connect plug installed as standard for installation into IC23-LEDT24 and IC23R-LEDT24 housings with mating connector
• a medium base socket adapter whip sold separately.

Trim

• Cast aluminum baffle trim with white finish
• Diffusing lens conceals the LEDs from direct view and provides uniform aperture luminance.


Life Rated for 36,000 hours at 70% lumen maintenance.

Labels

• ENERGY STAR Qualified
• Certified to the high efficacy requirements of California T24
• UL and cUL classified for use with most standard UL listed 6" recessed incandescent housings and Juno IC23-LEDT24 and IC23R-LEDT24
• Damp location
• Suitable for wet locations (indoor covered ceilings).


Testing All reports are based on published industry procedures; field performance may differ from laboratory performance.
