Juno Aculux AX2 A 12LM 40K 80CRI 18D ZT MVOLT Recessed Lighting 2 inch LED New Construction Standard Adjustable Housing 1000 Lumens, 4000K Color Temperature, 80 CRI, Spot Beam, 120-277V 0-10V Dimmable Light
Juno Aculux AX2 A 12LM 40K 80CRI 18D ZT MVOLT Recessed Lighting 2 inch LED New Construction Standard Adjustable Housing 1000 Lumens, 4000K Color Temperature, 80 CRI, Spot Beam, 120-277V 0-10V Dimmable Light
Email or call us at 310-822-6500 for pricing
For project,
request a quote
description
Product Family Description
LED Light Engine
LED Driver
- Recessed LED adjustable luminaire with 2? round aperture delivers up to 1005 lumens and is available with optical distributions approximating that of MR16 halogen lamps.
- Fixture has 50? visual cut-off for low aperture brightness.Low profile housing is available in IC rated or non-IC rated configurations.
LED Light Engine
- Consistent fixture to fixture color consistency within a 2-step MacAdam ellipse
- 2700K, 3000K, 3500K, or 4000K color temperatures are available with 80 CRI minimum
- 2700K and 3000K also available with 90 CRI minimum.
- Available with field interchangeable optics in
- 18? Spot, 24? Narrow Flood, 35? Flood, and 45? wide flood distributions.
- Patent pending Acu-Aim? precision geared hotaiming achieves 365? rotation, 40? tilt with any ceiling thickness from ?? to 1?
- Acu-Aim? translates light engine forward as it is aimed off nadir, ensuring maximum light and low brightness
- Black aiming mechanism preserves dark aperture.
- Self Flanged and Flush Mount styles are available
- For flush mount installations in drywall ceilings, specify the FMA2 adapter
- For flush mount installations in solid ceiling materials such as wood, stone, or tile ceilings, no flush mount adapter is required.
| Trim Style | Cutout Size |
| Self Flanged Trims | 2-7/8? |
| Flush Mount Trims (Solid Ceiling) | 2-7/8? |
| Flush Mount Trims (Drywall Ceiling) | 3? |
| Note: An accurate hole saw is recommended for best results. | |
LED Driver
- Choice of two drivers to accommodate voltages from 120-277 volts AC at 50/60Hz
- Dedicated 120V (-1) driver is dimmable with most incandescent, magnetic low voltage, and electronic low voltage dimmers
- Universal Voltage (-U) driver is dimmable with most 0-10V protocol dimmers
- For a list of compatible dimmers, refer to ACLXLED2-DIM
- Power Factor > 0.9
- Field replaceable from above or below ceiling.
- Rated for 50,000 hrs at 70% lumen maintenance.
- 5 years from date of purchase on LED components
- Standard Juno Lighting Group product guarantee terms and conditions apply.
- UL and cUL listed for damp or wet locations depending on trim
- IC rated new construction fixture meets energy code Air Leakage requirements per ASTM E283
- IC and Non-IC housings are ENERGY STAR? Qualified with select color temperatures and trims
- 90 CRI, 3000K IC rated new construction fixtures are certified to high efficacy requirements of California T24 with select color temperatures and trims
- IC rated new construction luminaire is Chicago Plenum (CCEA) approved
- Union made.

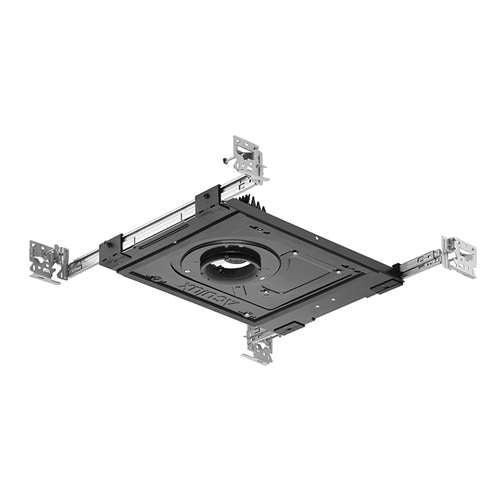

- Features patented (US Patent 8,038,113) Pro-VI? bar hanger system, permitting quick placement of housing with 24? on-center joists or suspended ceilings
- IC rated new construction luminaire also features vertically adjustable mounting brackets (butterfly brackets)
- Centerline indicators on plaster frame and patented (US Patent 8,277,090) Tru-Line? Platform featuring +/- ?? translation aids fixture alignment after installation, prior to drywall.
- IC housing includes (2) ?? knockouts in access plate, and is compatible with rigid conduit and flexible supply
- Non-IC housings include (2) ?? knockouts with pryout slots in junction box and are compatible with flexible electrical supply only
- All housings supplied with quick connect electrical connectors.
- ?? ? ?? ceiling standard
- For thicker ceilings, order CTA2-120 (.75?-1.20?) or CTA2-150 (1.20?-1.50?)
- Vertical aiming in ceiling 1? to 1 ?? is reduced from 40? to 25?.
