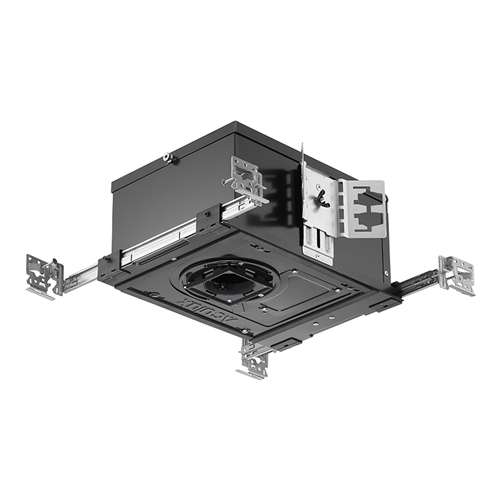

Juno Aculux AX2SQ A 08LM 30K 90CRI 45D ZT MVOLT CP ICAT Recessed Lighting 2 inch LED New Construction IC Square Adjustable Housing 800 Lumens, 3000K Color Temperature, 90 CRI, Wide Flood Beam, 120-277V 0-10V Dimmable Light

Juno Aculux AX2SQ A 08LM 30K 90CRI 45D ZT MVOLT CP ICAT Recessed Lighting 2 inch LED New Construction IC Square Adjustable Housing 800 Lumens, 3000K Color Temperature, 90 CRI, Wide Flood Beam, 120-277V 0-10V Dimmable Light


Email or call us at 310-822-6500 for pricing
For project, request a quote
View full details

description

PRODUCT DESCRIPTION
Recessed LED multi-lamp luminaire with 1-3/8? regressed pinhole square aperture delivers up to 880 lumens per head and is available with optical distributions approximating that of MR16 halogen lamps. Fixture has deep source regression for low aperture brightness. Low profile housing is available in IC rated or non-IC rated configurations, depending on lumen packages and number of heads.

PRODUCT SPECIFICATION

LED Light Engine
  • Consistent fixture to fixture color consistency within a 2-step MacAdam ellipse
  • 2700K, 3000K, 3500K, or 4000K color temperatures are available with 80 CRI minimum
  • 2700K and 3000K also available with 90 CRI minimum.
Modular Optics
  • Available with field interchangeable optics in 18? Spot, 24? Narrow Flood, 35? Flood, and 45? wide flood distributions.
Adjustability
  • Patent pending Acu-AimTM precision geared hot- aiming achieves 365 ? rotation, 40 ? tilt with any ceiling thickness from 1?2? to 1?
  • Acu-AimTM translates light engine forward as it is aimed off nadir, ensuring maximum light and low brightness
  • Black aiming mechanism preserves dark aperture.
LED Driver
  • Choice of two drivers to accommodate voltages from 120-277 volts AC at 50/60Hz
  • Dedicated 120V (-1) driver is dimmable with most incandescent, magnetic low voltage, and electronic low voltage dimmers
  • Universal Voltage (-U) driver is dimmable with most 0-10V protocol dimmers
  • For a list of compatible dimmers, refer to ACLXLED2-DIM
  • Power Factor > 0.9
  • Field replaceable from above or below ceiling.

Life

  • Rated for 50,000 hrs at 70% lumen maintenance.
Warranty
  • 5 years from date of purchase on LED components
  • Standard Juno Lighting Group product guarantee terms and conditions apply.
Codes/Labels
  • UL and cUL listed for damp locations depending on trim
  • IC rated new construction fixture meets energy code Air Leakage requirements per ASTM E283
  • ENERGY STAR? with all color temperatures with 80 CRI and spot, narrow flood, and flood optics
  • Chicago Plenum (CCEA) is standard on single head and available as an option on 2 or 3 head units
  • Union made.
New Construction Mounting
  • Features patented (US Patent 8,038,113) Pro-VITM bar hanger system, permitting quick placement of housing with 24? on-center joists or suspended ceilings
  • Also features vertically adjustable mounting brackets (butterfly brackets).
Wiring
  • Housings includes multiple 1?2? knockouts and is compatible with rigid conduit and flexible supply
  • All housings supplied with quick connect electrical connectors.
Ceiling Thickness
  • 1?2? ? 11?2? ceiling standard
  • Vertical aiming in ceiling 1? to 1 1?2? is reduced from 40 ? to 25 ?.
