Juno Aculux AX2SQ AR 08LM 30K 80CRI 45D FPC 120 Recessed Lighting 2 inch LED Remodel Standard Square Adjustable Housing 700 Lumens, 3000K Color Temperature, 80 CRI, Wide Flood Beam, 120V Dimmable Light
Juno Aculux AX2SQ AR 08LM 30K 80CRI 45D FPC 120 Recessed Lighting 2 inch LED Remodel Standard Square Adjustable Housing 700 Lumens, 3000K Color Temperature, 80 CRI, Wide Flood Beam, 120V Dimmable Light
Email or call us at 310-822-6500 for pricing
For project,
request a quote
description
PRODUCT DESCRIPTION

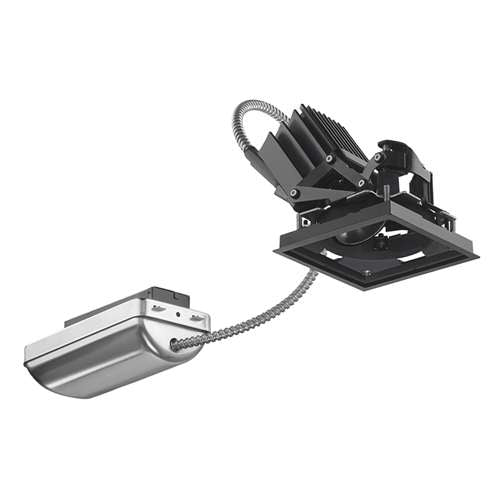

- Recessed LED adjustable luminaire with 1?? square aperture delivers up to 900 lumens and is available with optical distributions approximating that of MR16 halogen lamps. Fixture has 50? visual cut-off for low aperture brightness. Low profile remodel housing is non-IC rated for use in non-insulated areas or where insulation is spaced at least 3? from housing.
PRODUCT SPECIFICATIONS
LED Light Engine - Consistent fixture to fixture color consistency within a 2-step MacAdam ellipse
- 2700K, 3000K, 3500K, or 4000K color temperatures are available with 80 CRI minimum
- 2700K and 3000K are also available with 90 CRI minimum.
- Available with field interchangeable optics in 18? Spot, 24? Narrow Flood, 35? Flood, and 45? wide flood distributions.
- Patent pending Acu-Aim? precision geared hot-aiming achieves 365? rotation, 40? tilt with any ceiling thickness from ?? to 1?
- Acu-Aim? translates light engine forward as it is aimed off nadir, ensuring maximum light and low brightness
- Black aiming mechanism preserves dark aperture.
- Self Flanged and Flush Mount styles are available
- Flange is same finish as trim unless optional painted white flange is specified
- For flush mount installations in drywall ceilings, specify the FMASQ2R adapter.
LED Driver
- Choice of two drivers to accommodate voltages from 120-277 volts AC at 50/60Hz
- Dedicated 120V (-1) driver is dimmable with most incandescent, magnetic low voltage, and electronic low voltage dimmers
- Universal Voltage (-U) driver is dimmable with most 0-10V protocol dimmers
- For a list of compatible dimmers, refer to ACLXLED2-DIM
- Power Factor > 0.9
- Field replaceable from above or below ceiling.
- Rated for 50,000 hrs at 70% lumen maintenance.
- 5 years from date of purchase on LED components
- Standard Juno Lighting Group product guarantee terms and conditions apply.
- UL and cUL listed for damp or wet locations depending on trim
- ENERGY STAR? Qualified with select color temperatures and trims
- Union made.

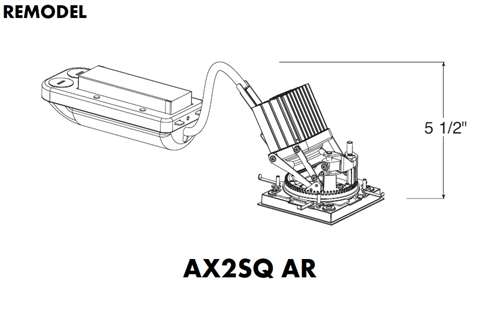

- Fixture installs from below the ceiling and secured to remodel ring.
- Includes (2) ?? knockouts equipped with pryout slots and are compatible with flexible electrical supply only
- Supplied with quick connect electrical connectors.
- ?? ? 1?? ceiling standard.
