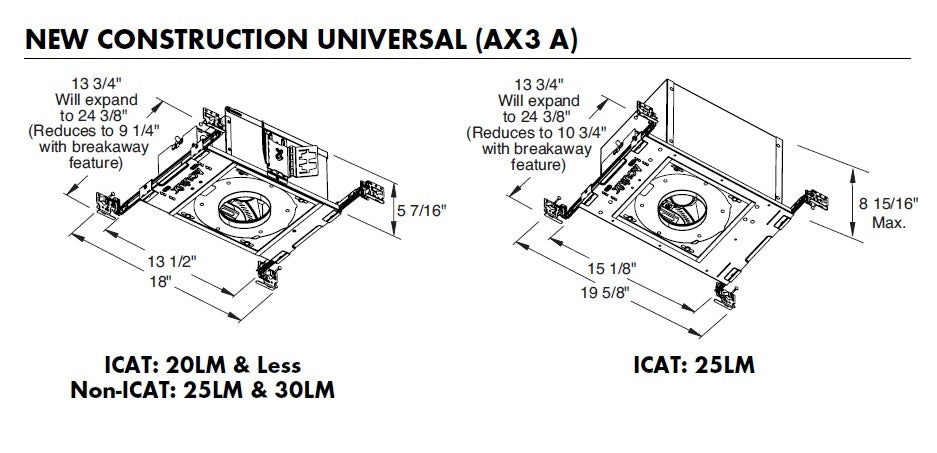

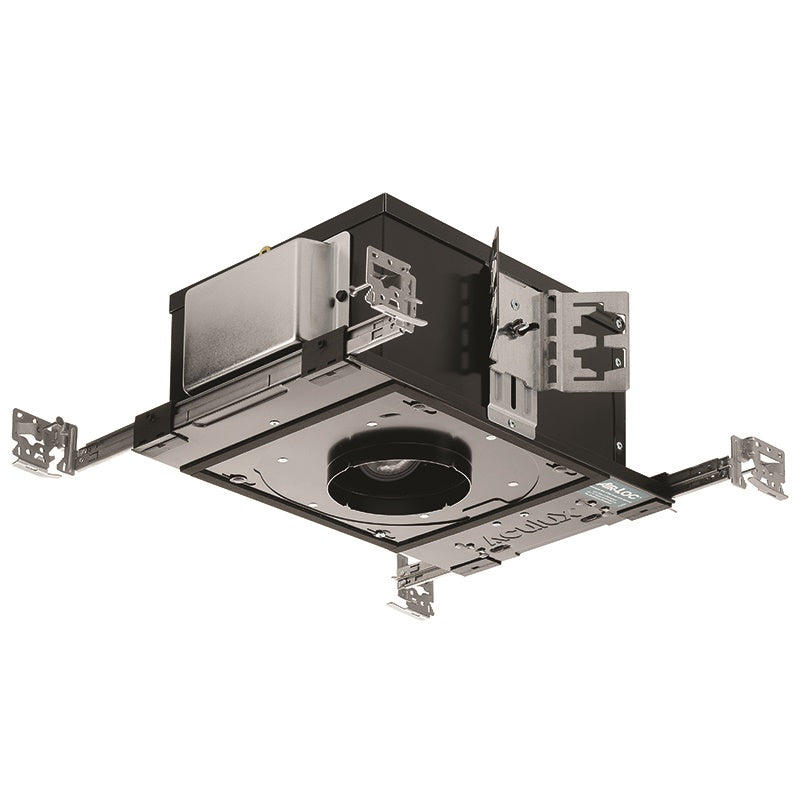

Juno Aculux AX3 A G4 20LM 35K 80CRI 50D ECOD MVOLT CP Recessed Lighting 3 inch non IC LED New Construction Adjustable Housing, 2000 Lumens, 80 CRI, 50 Degree Wide Flood, Luton Hi-Lume EcoSystem, 1% Dim, 120-277V, Chicago Plenum

Juno Aculux AX3 A G4 20LM 35K 80CRI 50D ECOD MVOLT CP Recessed Lighting 3 inch non IC LED New Construction Adjustable Housing, 2000 Lumens, 80 CRI, 50 Degree Wide Flood, Luton Hi-Lume EcoSystem, 1% Dim, 120-277V, Chicago Plenum


Email or call us at 310-822-6500 for pricing
For project, request a quote
View full details

description

PRODUCT SPECIFICATIONS
LED Light Engine
  • 2-step MacAdam ellipse binning
  • 2700K, 3000K, 3500K, or 4000K CCTs available with 80 CRI minimum
  • 2700K and 3000K available with 90 CRI and 95 CRI minimum (R9>90).
Quiet, Glare-free Ceiling 45 degree visual cutoff to source and source image.

Modular Optics
  • Available with 12 degree, 24 degree, 35 degree and 50 degree field interchangeable optics
  • 20 degree, 30 degree, 40 degree, 45 degree and 60 degree FWHM can be achieved with diffusing films and 12D optic
  • Patented (US Patent 8,950,911) auto-adjusting optic holder maximizes efficiency by maintaining optimal LED optic position
  • AX3 A accommodates three (3) beam control lenses and/or filters
  • AX3 LPA accepts two (2) beam control lenses and/or filters.
Adjustability
  • Acu-Aim precision geared hot-aiming achieves 370 degree rotation, 45 degree tilt
  • Optimized center beam optics translates light engine forward as it is aimed off nadir, ensuring maximum light and low brightness.
Trims Styles
  • Trim Ring, Self Flanged and flangeless reflectors are available
  • Must specify FMA3 (gypsum) or SFM3 (wood/stone/tile) option for flangeless installations.
LED Driver
  • Accommodates 120-277V input and multiple control protocols
  • For a list of compatible dimmers, refer to ACLXLED3-DIM
  • Power Factor > 0.9
  • Field replaceable from below or above ceiling.
Life Rated for 50,000 hrs at 70% lumen maintenance.

Warranty 5-year limited warranty.

Codes/Labels
  • UL and cUL listed for through branch wiring, damp locations
  • Wet location listed with certain trims
  • Meets energy code Air Leakage requirements per ASTM E283
  • ENERGYSTAR certified with select trims and housings
  • Can be used to comply with Title 24, Part 6 with select trims and housings
  • ICAT housings are rated for direct contact with insulation
  • AX3 08LM/12LM/15LM (ICAT option) are compatible with spray foam insulation with an R-Value of 3.7 per inch or less
  • Union made
