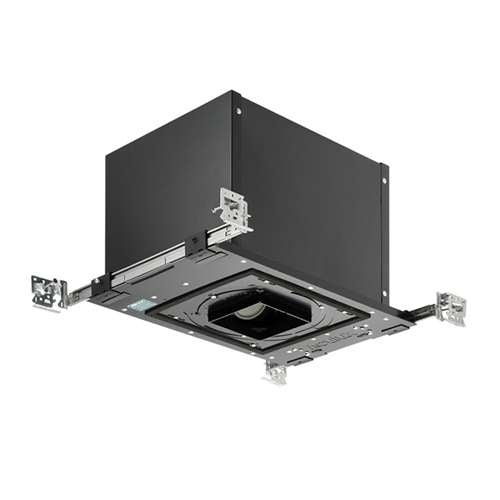

Juno Aculux AX3SQ A 10LM WDTW 90CRI 35D DMXR MVOLT ICAT Recessed Lighting 3 inch IC LED New Construction Square Adjustable Housing, WarmDim (1800K-3000K) and Tunable White (2000K-4350K), 1000 Lumens, 90 CRI, 35 Degree Flood, DMX,RDM Driver, 1% Dim, 120-27

PRODUCT DESCRIPTION

LED Light Engine

• Consistent fixture to fixture color within 3-step MacAdam ellipse
• 2700K, 3000K, 3500K, or 4000K color temperatures are available with 80 CRI minimum
• 2700K and 3000K also available with 90 CRI minimum.

Modular Optics

• Available with 12 degree Spot, 24 degree Narrow Flood, 35 degree Flood and 50 degree wide flood field interchangeable optics
• Additional distributions of 20 degree, 30 degree, 40 degree, 45 degree and 60 degree FWHM can be achieved with the use of the diffusing films and spot primary optic
• Patented (US Patent 8,950,911) auto-adjusting optic holder maximizes luminaire efficiency by maintaining optimal LED optic position
• Accommodates up to three (3) additional beam control lenses and/or filters.

Adjustability

• Acu-Aim precision geared hot-aiming achieves 370 degree rotation, 45 degree tilt
• Optimized center beam optics translates light engine forward as it is aimed off nadir, ensuring maximum light and low brightness
• Black aiming mechanism preserves dark aperture.

Trims Style

• Check PDF spec for trims selection
• Trim Ring, Self Flanged and Flush Mount reflectors utilize torsion spring retention for tight, secure fit to ceiling
• Trim ring features beveled knife edge for clean ceiling interface
• Self Flanged reflectors with polished or optional white painted flange
• For flush mount installations in drywall ceilings use the FMA4 flush mount adapter
• For flush mount installations in wood, stone, or tile ceilings the FMA4-SC*** must be used (specify ceiling thickness and adapter finish).

LED Driver

• Seven (7) driver options available to accommodate 120-277V input and multiple control protocols
• For a list of compatible dimmers, refer to ACLXLED3-DIM
• Power Factor > 0.9
• Field replaceable from below or above ceiling.

Life

• Rated for 50,000 hrs at 70% lumen maintenance.

Warranty

• 5 years from date of purchase on LED components.

Codes and Labels

• UL and cUL listed for through branch wiring, damp locations. Wet location listed with certain trims
• Meets energy code Air Leakage requirements per ASTM E283
• ENERGY STAR Qualified with select trims
• IC rated luminaires with 90CRI light engine are certified to high efficacy requirements of California T24 with select color temperatures and trims
• IC housings are rated for direct contact with insulation
• AX3SQ A 08LM/12LM and AX3SQ LPA 08LM/12LM (ICAT) are compatible with spray foam insulation with an R-Value of 3.7 per inch or less
• Union made.
