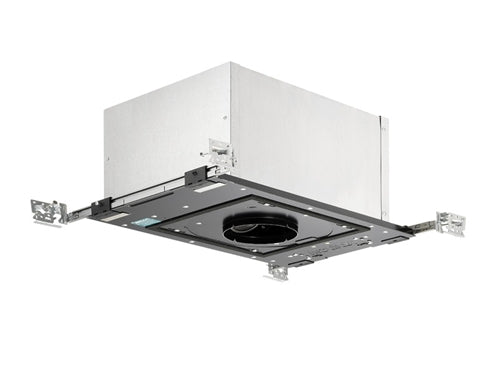

Juno Aculux Recessed Lighting IC43N 3-1/4 inch Low Voltage New Construction IC Housing with 120V Magnetic Transformer
Juno Aculux Recessed Lighting IC43N 3-1/4 inch Low Voltage New Construction IC Housing with 120V Magnetic Transformer
Regular price
Price:
$235.58
Regular price
Price:
Sale price
$235.58
Unit price
per
MODEL: Juno-IC43N
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
Recessed adjustable MR16 luminaire with 3¼” aperture and precision geared hot-aiming. Fixture has 50° visual cutoff to lamp and lamp image. Sealed Air-Loc housing eliminates leak-paths to ensure maximum energy savings and controls plenum sound transmission. IC rated housing for use in direct contact with insulation.
PRODUCT SPECIFICATIONS
Trims Style
Trim Ring, Self Flanged and Flush Mount Trims utilize torsion spring retention for tight, secure fit to ceiling
Trim ring features beveled knife edge for clean ceiling interface
Self Flanged reflectors with polished or optional white painted flange
Flush Mount trims must be used with FMA4 Flush Mount Adapter.
Lampholder accommodates up to three (3) 2” captive accessory lenses
Supplied with stippled clear uniformity lens.
Ceramic bi-pin socket with double blade nickel alloy contacts Quick disconnect for simplified maintenance.
One 50W MR16 lamp max. (See trim for max. lamp rating)
Acu-Aim™ precision geared hot-aiming achieves 370° rotation, 45° tilt Optimized center lamp beam optics translates lamp forward as it is aimed off nadir, insuring maximum light and low brightness Black aiming mechanism with shield prevents visibility into fixture and preserves dark aperture Shield hinges out of way to facilitate maintenance.
120V High efficiency (>90%) dual tap magnetic, toroidal transformer has a boost tap to compensate for dimmer losses, improving color temperature and lumen output Potted to eliminate noise and vibration High efficiency (>94%), high power factor electronic transformer also available.
May be dimmed using dimmers specifically designed for low voltage magnetic or electronic transformers; consult factory or dimmer manufacturer for additional information.
UL and cUL listed for direct contact with insulation, through-branch wiring, damp locations (wet location with approved trims) Meets energy code Air Leakage requirements per ASTM E283 Product thermally protected Union made.

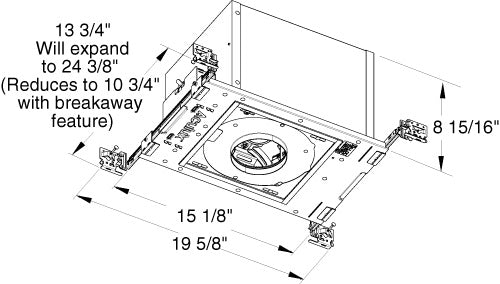

Patent pending Pro-VI™, telescoping bar hanger system with locking set screws, permits quick placement of housing within 24” O.C. joists or suspended ceilings Robust bar eliminates flexing regardless of fixture position Integral T-bar notch with locking tabs secures housing to suspended ceiling grid
Captive bugle-headed ring shank nail for quick one step installation
Bar Hanger foot aligns to bottom of construction joist and breaks away for use in suspended ceilings.
Rated for 4 No. 12 AWG 90° C through branch circuit conductors and includes (6) ½”, (1) ¾”, and (4) Non-metallic sheathed cable knock-outs
Push-in electrical connectors for field connections.
Steel plaster frame and aluminum housing painted black for visually dark interior
V-Notch in plaster frame aids fixture alignment during installation
Patent pending Tru-Line™ Adjustment Mechanism featuring +/- ½” translation aids fixture alignment after installation, prior to drywall.
1/2” – 7/8” ceiling standard For thicker ceilings, order CTA4N-125 (7/8”-1 1/4”), CTA4N-163 (1 1/4”-1 5/8) or CTA4N-200 (1 5/8” – 2”).
