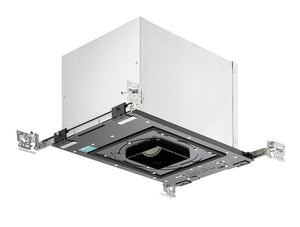

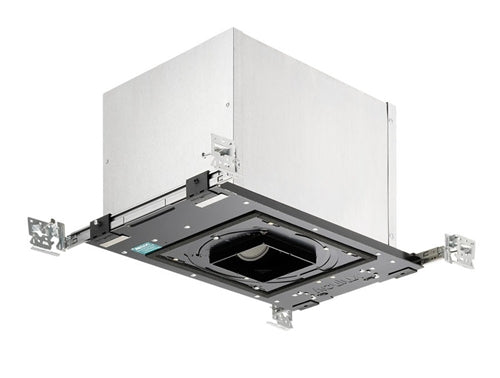

Juno Aculux Recessed Lighting IC43SQ 3-1/4 inch Low Voltage New Construction IC Square Adjustable Housing with 120V Magnetic Transformer
Juno Aculux Recessed Lighting IC43SQ 3-1/4 inch Low Voltage New Construction IC Square Adjustable Housing with 120V Magnetic Transformer
Regular price
Price:
$246.54
Regular price
Price:
Sale price
$246.54
Unit price
per
MODEL: Juno-IC43SQ
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION
PRODUCT SPECIFICATIONS
Trims Style
- Recessed adjustable MR16 luminaire with 3¼” square aperture and precision geared hot-aiming. Fixture has 50° visual cutoff to lamp and lamp image. Sealed Air-Loc housing eliminates leak-paths to ensure maximum energy savings and controls plenum sound transmission. IC rated housing for use in direct contact with insulation.
PRODUCT SPECIFICATIONS
Trims Style
- Die Cast Self Flanged and Flush Mount reflectors utilize precision wound double torsion springs for tight, secure fit to ceiling
- Flange is same finish as reflector unless optional painted white flange is specified
- Flush Mount trims must be used with FMASQ4 Flush Mount Adapter.
- Lamp holder accommodates up to three (3) 2” captive accessory lenses
- Supplied with stippled clear uniformity lens.
Socket
- Ceramic bi-pin socket with double blade nickel alloy contacts
- Quick disconnect for simplified maintenance.
Lamp
Adjustability- One 50W MR16 lamp max. (See trim for max. lamp rating)
- Acu-Aim™ precision geared hot-aiming achieves 370° rotation, 45° tilt
- Optimized center lamp beam optics translates lamp forward as it is aimed off nadir, insuring maximum light and low brightness
- Black aiming mechanism with shield prevents visibility into fixture and preserves dark aperture
- Shield hinges out of way to facilitate maintenance.
- 120V High efficiency (>90%) dual tap magnetic, toroidal transformer has a boost tap to compensate for dimmer losses, improving color temperature and lumen output
- Potted to eliminate noise and vibration
- High efficiency (>94%), high power factor electronic transformer also available.
- May be dimmed using dimmers specifically designed for low voltage magnetic or electronic transformers; consult factory or dimmer manufacturer for additional information.
- UL and cUL listed for direct contact with insulation, through-branch wiring, damp locations (wet location with approved trims)
- Meets energy code Air Leakage requirements per ASTM E283
- Product thermally protected
- Union made.

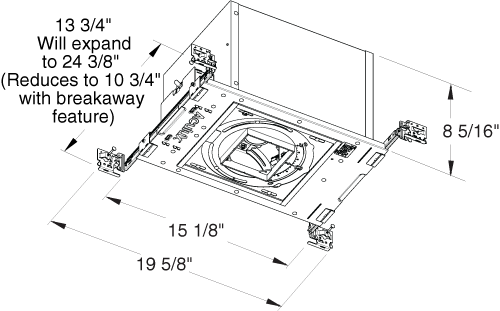

- Patent pending Pro-VI™,telescoping bar hanger system with locking set screws, permits quick placement of housing within 24” O.C. joists or suspended ceilings
- Robust bar eliminates flexing regardless of fixture position
- Integral T-bar notch with locking tabs secures housing to suspended ceiling grid
- Captive bugle-headed ring shank nail for quick one step installation
- Bar Hanger foot aligns to bottom of construction joist and breaks away for use in suspended ceilings.
- Rated for 4 No. 12 AWG 90° C through branch circuit conductors and includes (6) ½”, (1) ¾”, and (4) Non-metallic sheathed cable knock-outs
- Push-in electrical connectors for field connections.
- Steel plaster frame and aluminum housing painted black for visually dark interior
- V-Notch in plaster frame aids fixture alignment during installation
- Patent Pending Tru-Line™ Adjustment Mechanism featuring +/- ½” translation and +/- 45° aperture rotation aids fixture alignment after installation, prior to drywall.
- ½” – 7/8” ceiling standard
- For thicker ceilings,order CTA4SQ-125 (7/8”-1¼”), CTA4SQ-163 (1¼”-1 5/8”) or CTA4SQ-200 (1 5/8” – 2”).
