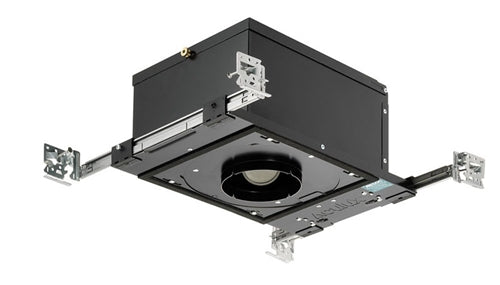

Juno Aculux Recessed Lighting TC13N (TC13N) 3-1/4 inch Line Voltage New Construction Standard Round Adjustable Housing
Juno Aculux Recessed Lighting TC13N (TC13N) 3-1/4 inch Line Voltage New Construction Standard Round Adjustable Housing
Regular price
Price:
$152.55
Regular price
Price:
Sale price
$152.55
Unit price
per
MODEL: Juno-TC13N
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
Recessed adjustable PAR20/PAR16 luminaire with 3¼” aperture and precision geared hot-aiming. Fixture has 50° visual cutoff to lamp and lamp image. Sealed Air-Loc housing ensures maximum energy savings and controls plenum sound transmission. Low profile non-IC housing is for use in non-insulated areas, or where insulation is spaced at least 3” from housing.
Trim Ring, Self Flanged and Flush Mount Trims utilize torsion spring retention for tight, secure fit to ceiling Trim ring features beveled knife edge for clean ceiling interface Self Flanged reflectors with polished or optional white painted flange Flush Mount trims must be used with FMA4 Flush Mount Adapter.
Medium base porcelain socket with nickel plated copper screw shell.
One 50W PAR20 or 75W PAR16 lamp max. (See trim for max. lamp rating)
Acu-Aim™ precision geared hot-aiming achieves 370° rotation, 40° tilt Optimized center lamp beam optics translates lamp forward as it is aimed off nadir, insuring maximum light and low brightness Black aiming mechanism with shield prevents visibility into fixture and preserves dark aperture Shield hinges out of way to facilitate maintenance.
UL and cUL listed for direct contact with insulation, through-branch wiring, damp locations (wet location with approved trims) Meets energy code Air Leakage requirements per ASTM E283 Product thermally protected Union made.

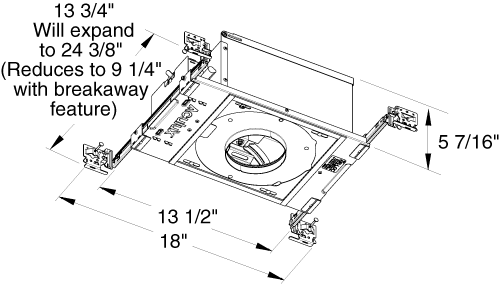

With locking set screws, permits quick placement of housing within 24” O.C. joists or suspended ceilings Robust bar eliminates flexing regardless of fixture position Integral T-bar notch with locking tabs secures housing to suspended ceiling grid Captive bugle-headed ring shank nail for quick one-step installation Bar Hanger foot aligns to bottom of construction joist and breaks away for use in suspended ceilings.
Rated for 8 No. 12 AWG 90° C through branch circuit conductors and includes (5) ½”, (1) ¾”, and (4) Non-metallic sheathed cable knock-outs Push-in electrical connectors for field connections.
Black steel plaster frame and housing painted for visually dark interior V-Notch in plaster frame aids fixture alignment during installation Patent pending Tru-Line™ Adjustment Mechanism featuring +/- ½” translation aids fixture alignment after installation, prior to drywall.
1/2” – 7/8” ceiling standard For thicker ceilings, order CTA4N-125 (7/8”-1 1/4”), CTA4N-163 (1 1/4”- 1 5/8”) or CTA4N-200 (1 5/8” – 2”).
