Juno Aculux Recessed Lighting TC13SQ (TC13SQ) 3-1/4 inch Line Voltage New Construction Standard Square Adjustable Housing, PAR16/PAR20, 120V
Juno Aculux Recessed Lighting TC13SQ (TC13SQ) 3-1/4 inch Line Voltage New Construction Standard Square Adjustable Housing, PAR16/PAR20, 120V
View full details
description
Recessed adjustable PAR20/PAR16 luminaire with 3¼” square aperture and precision geared hot-aiming. Fixture has 50° visual cutoff to lamp and lamp image. Sealed Air-Loc housing eliminates leak-paths to ensure maximum energy savings and controls plenum sound transmission. Low profile non-IC housing is ideal for space restricted plenum applications and is for use in non-insulated areas, or where insulation is spaced at least 3” from housing.
Die Cast Self Flanged and Flush Mount reflectors utilize precision wound double torsion springs for tight, secure fit to ceiling Flange is same finish as reflector unless optional painted white flange is specified Flush Mount trims must be used with FMASQ4 Flush Mount Adapter.
Medium base porcelain socket with nickel plated copper screw shell.
One 50W PAR20 or 75W PAR16 lamp max. (See trim for max. lamp rating)
Acu-Aim™ precision geared hot-aiming achieves 370° rotation, 40° tilt Optimized center lamp beam optics translates lamp forward as it is aimed off nadir, insuring maximum light and low brightness Black aiming mechanism with shield prevents visibility into fixture and preserves dark aperture Shield hinges out of way to facilitate maintenance.
UL and cUL listed for through-branch wiring, damp locations (wet location with approved trims) Meets energy code Air Leakage requirements per ASTM E283 Product thermally protected Union made.

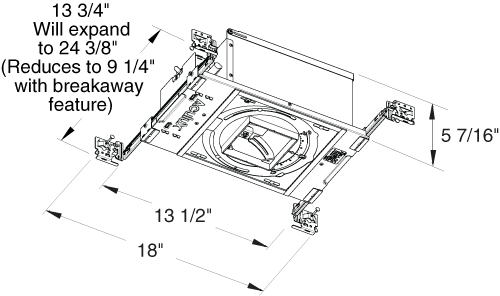

With locking set screws, permits quick placement of housing within 24” O.C. joists or suspended ceilings Robust bar eliminates flexing regardless of fixture position Integral T-bar notch with locking tabs secures housing to suspended ceiling grid Captive bugle-headed ring shank nail for quick one-step installation Bar Hanger foot aligns to bottom of construction joist and breaks away for use in suspended ceilings.
Rated for 8 No. 12 AWG 90° C through branch circuit conductors and includes (5) ½”, (1) ¾”, and (4) Non-metallic sheathed cable knock-outs Push-In electrical connectors for field connections.
Black steel plaster frame and housing painted for visually dark interior V-Notch in plaster frame aids fixture alignment during installation Patent Pending Tru-Line™ Adjustment Mechanism featuring +/- ½” translation and +/- 45° aperture rotation aids fixture alignment after installation, prior to drywall.
½” – 7/8” ceiling standard For thicker ceilings, order CTA4SQ-125 (7/8”-1¼”), CTA4SQ-163 (1¼”- 1 5/8”) or CTA4SQ-200 (1 5/8” – 2”).
