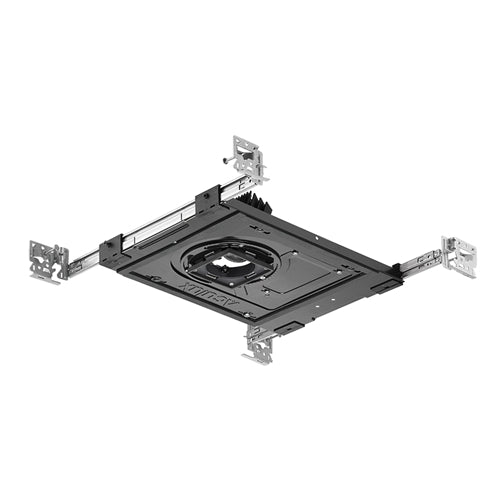

Juno Aculux Recessed Lighting TC210LSQA-930-F-1 2 inch LED New Construction Standard Square Adjustable Housing 700 Lumens, 3000K Color Temperature, 90 CRI, Flood Beam, 120V Dimmable Light
Juno Aculux Recessed Lighting TC210LSQA-930-F-1 2 inch LED New Construction Standard Square Adjustable Housing 700 Lumens, 3000K Color Temperature, 90 CRI, Flood Beam, 120V Dimmable Light
Email or call us at 310-822-6500 for pricing
For project,
request a quote
description
PRODUCT DESCRIPTION
- Recessed LED adjustable luminaire with 1¾” inch square aperture delivers up to 900 lumens and is available with optical distributions approximating that of MR16 halogen lamps. Fixture has 50˚ visual cut-off for low aperture brightness. Low profile housing is available in IC rated or non-IC rated configurations.
PRODUCT SPECIFICATIONS
LED Light Engine- Consistent fixture to fixture color consistency within a 2-step MacAdam ellipse
- 2700K, 3000K, 3500K, or 4000K color temperatures are available with 80 CRI minimum
- 2700K and 3000K also available with 90 CRI minimum.
- Available with field interchangeable optics in 18° Spot, 24° Narrow Flood, 35° Flood, and 45° wide flood distributions.
- Patent pending Acu-Aim™ precision geared hot-aiming achieves 365˚ rotation, 40˚ tilt with any ceiling thickness from ½” to 1”
- Acu-Aim™ translates light engine forward as it is aimed off nadir, ensuring maximum light and low brightness
- Black aiming mechanism preserves dark aperture.
- Self Flanged and Flush Mount styles are available
- Flange is same finish as trim unless optional painted white flange is specified
- For flush mount installations in drywall ceilings, specify the FMASQ2 adapter
- For flush mount installations in solid ceiling materials such as wood, stone, or tile ceilings, no flush mount adapter is required.
LED Driver
- Choice of two drivers to accommodate voltages from 120-277 volts AC at 50/60Hz
- Dedicated 120V (-1) driver is dimmable with most incandescent, magnetic low voltage, and electronic low voltage dimmers
- Universal Voltage (-U) driver is dimmable with most 0-10V protocol dimmers
- For a list of compatible dimmers, refer to ACLXLED2-DIM
- Power Factor > 0.9
- Field replaceable from above or below ceiling.
- Rated for 50,000 hrs at 70% lumen maintenance.
- 5 years from date of purchase on LED components
- Standard Juno Lighting Group product guarantee terms and conditions apply.
- UL and cUL listed for damp or wet locations depending on trim
- IC rated new construction fixture meets energy code Air Leakage requirements per ASTM E283
- ENERGY STAR® Qualified with all color temperatures with 80 CRI
- IC rated new construction luminaire is Chicago Plenum (CCEA) approved
- Union made.

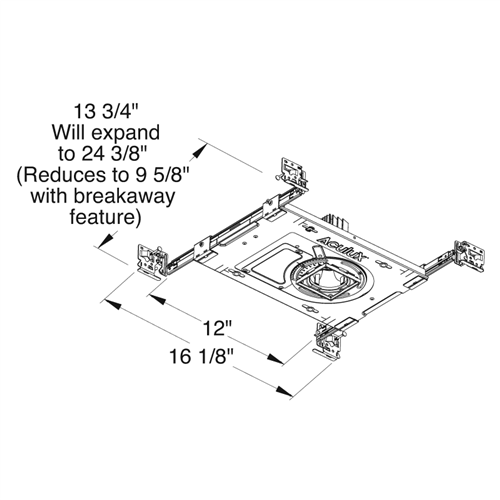

- Features patented (US Patent 8,038,113) Pro-VI™ bar hanger system, permitting quick placement of housing with 24” on-center joists or suspended ceilings
- IC rated new construction luminaire also features vertically adjustable mounting brackets (butterfly brackets)
- V-Notch in plaster frame and patented (US Patent 8,277,090) Tru-Line™ Platform featuring +/- ½” translation aids fixture alignment after installation, prior to drywall.
- IC housing includes (2) ½” knockouts in access plate, and is compatible with rigid conduit and flexible supply
- Non-IC housings include (2) ½” knockouts with pryout slots in junction box and are compatible with flexible electrical supply only
- All housings supplied with quick connect electrical connectors.
- ½” – ¾” ceiling standard
- For thicker ceilings, order CTASQ2-120 (.75”-1.20”) or CTASQ2-150 (1.20”-1.50”)
- Vertical aiming in ceiling 1” to 1 ½” is reduced from 40˚ to 25˚.
