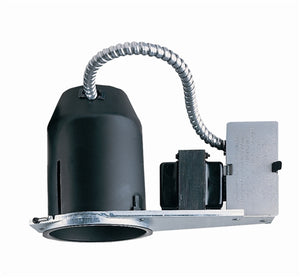

Juno Aculux Recessed Lighting TC43NR-E1 (TC43NR ELV 120) 3-1/4 inch Low Voltage Remodel Standard Housing with 120V Electronic Transformer
Juno Aculux Recessed Lighting TC43NR-E1 (TC43NR ELV 120) 3-1/4 inch Low Voltage Remodel Standard Housing with 120V Electronic Transformer
Regular price
Price:
$196.19
Regular price
Price:
Sale price
$196.19
Unit price
per
MODEL: Juno-TC43NR-E1
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION
- Recessed adjustable MR16 remodel luminaire with 3¼” aperture. Fixture has 50° visual cutoff to lamp and lamp image. Low profile non-IC housing is for use in non-insulated areas, or where insulation is spaced at least 3” from housing. Installs quickly and securely with patented (US Patent 7,191,993) push-pull cable system through ceiling opening.
PRODUCT SPECIFICATIONS
- Utilizes torsion spring retention for tight, secure fit to ceiling
- Trim ring features beveled knife edge for clean ceiling interface.
- Lamp holder accommodates up to three (3) 2” captive accessory lenses
- Supplied with stippled clear uniformity lens.
- Ceramic bi-pin socket with double blade nickel alloy contacts
- Aluminum heat shield.
- One 50W MR16 lamp max. (See trim for max. lamp rating)
- Optimized lamp beam optics insures maximum light output and low brightness at any angle
- 361° rotation (350° with mechanism, up to 18° additional with rotation of housing assembly) and 35° tilt hot aiming
- Black adjustment mechanism preserves dark aperture.
- 120 V thermally protected magnetic transformer is serviceable from below ceiling
- High efficiency (>95%), high power factor electronic transformer also available.
- May be dimmed using dimmers specifically designed for low voltage magnetic or electronic transformers; consult factory or dimmer manufacturer for additional information.
Codes/Labels
- UL and cUL listed for through-branch wiring, damp locations (wet location with approved trims)
- Product thermally protected
- Union made.
Patented (US Patent 7,191,993) “ Push-Pull” Cable System
- Allows rapid installation without tools or loose parts
- Template included for accurate ceiling cutout
- Housing accommodates ceiling thickness from 3/8” to 2” without altering photometrics
- Fits 2 x 6 construction.
- Rated for 4 No. 12 AWG 90° C through branch circuit conductors and includes (3) ½”, and (2) Non-metallic sheathed cable knock-outs
- Push-in electrical connectors for field connections.
- Frame Galvanized steel plaster frame. Housing painted black for visually dark interior
- Packaged for ease of rapid installation.
