Juno Aculux TC412LR-927-S-L Recessed Lighting 3-1/4 inch LED Remodel Adjustable Non-IC Housing, 1200 Lumens, 2700K Color Temp, 90 CRI, Spot Beam, 120-277V, Lutron Hi-Lume 3-Wire Dimming, Ecosystem Compatible, 1%

PRODUCT DESCRIPTION

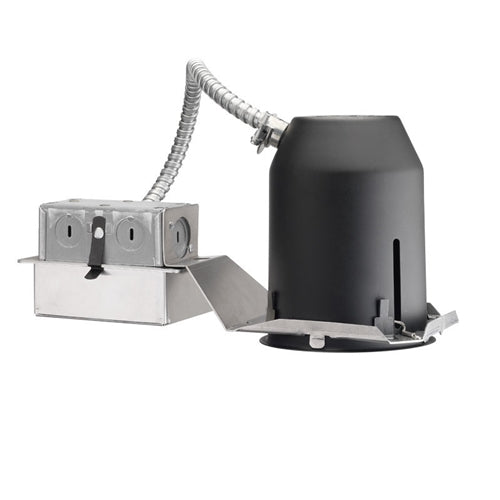

Recessed adjustable LED remodel luminaire produces up to 800 delivered lumens. Fixture has 50° visual cutoff. This low profile housing is offered in Non-IC rated configuration. Non-IC luminaires must be used in non-insulated areas or where insulation is spaced at least 3” from housing. Installs quickly and securely with patented (US Patent 7,191,993) push-pull cable system through ceiling opening.

PRODUCT DESCRIPTION

LED Light Engine

• Consistent fixture to fixture color within 3-step MacAdam ellipse
• 2700K, 3000K, 3500K, or 4000K color temperatures are available with 80 CRI minimum
• 2700K and 3000K also available with 90 CRI minimum.

Modular Optics

• Available with 12° Spot, 24° Narrow Flood, 35° Flood and 50° wide flood field interchangeable optics
• Additional distributions of 20°, 30°, 40°, 45° and 60° FWHM can be achieved with the use of the diffusing films and spot primary optic
• Patented (US Patent 8,950,911) auto-adjusting optic holder maximizes luminaire efficiency by maintaining optimal LED optic position
• Accommodates up to two (2) additional beam control lenses and/or filters.

Adjustability

• 370° rotation, 35° tilt hot aiming with locking
• Optimized optics translates light engine forward as it is aimed off nadir, ensuring maximum light and low brightness
• Black aiming mechanism preserves dark aperture.

Trims Style

• Check PDF Specfication for trim selection
• Trim Ring and Self Flanged reflectors utilize torsion spring retention for tight, secure fit to ceiling
• Trim ring features beveled knife edge for clean ceiling interface
• Self Flanged reflectors with polished or optional white painted flange.

LED Driver

• Choice of five drivers to accommodate voltages from 120-277 volts AC
• Dedicated 120V (-1) driver is dimmable with most incandescent, magnetic low voltage, and electronic low voltage dimmers
• 120-277V Universal Voltage (-U) driver is dimmable with most 0-10V protocol dimmers
• 120-277V Lutron Hi-Lume A Series 3-wire (-L) driver is dimmable with 3-wire fluorescent controls and compatible with EcoSystem
• 120V Lutron Hi-Lume A Series 2-wire (-D) driver is dimmable with 2-wire forward phase dimmers containing a neutral wire
• 120-277V DALI (-A) compatible driver is also available
• For a list of compatible dimmers, refer to ACLXLED3-DIM
• Power Factor > 0.9
• Field replaceable from below or above ceiling.

Life

• Rated for 50,000 hrs at 70% lumen maintenance.

Warranty

• 5 years from date of purchase on LED components.

Codes and Labels

• UL and cUL listed for damp locations and wet locations with certain trims
• Union made

Patented (US Patent 7,191,993) “Push-Pull” Cable System

• Allows rapid installation without tools or loose parts

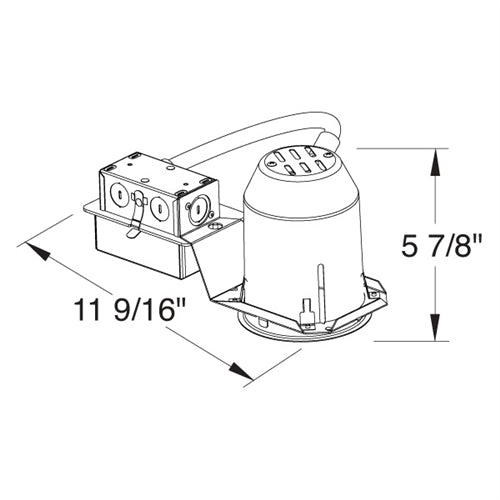

• Housing accommodates ceiling thickness from 3/8” to 2” without altering photometrics
• Fits 2 x 6 construction.

Ordering Information Housing, trim and accessories each ordered separately
