Juno Aculux TC943MSQ-MR16-20E1 Recessed Lighting 3-1/4 inch Standard Housing 20W MR16 Metal Halide Housing, 120V
Juno Aculux TC943MSQ-MR16-20E1 Recessed Lighting 3-1/4 inch Standard Housing 20W MR16 Metal Halide Housing, 120V
Regular price
Price:
$408.57
Regular price
Price:
Sale price
$408.57
Unit price
per
MODEL: Juno-TC943MSQ-MR16-20E1
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description

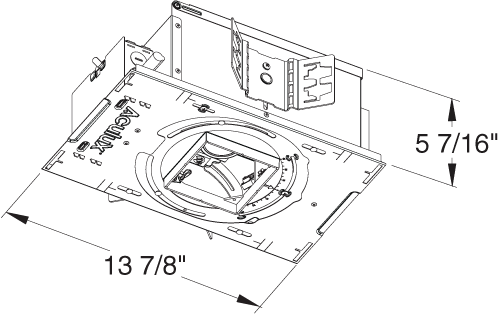

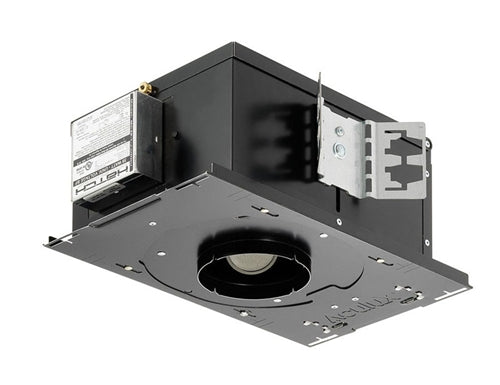

Recessed adjustable metal halide MR16 luminaire with 3¼” square aperture and precision geared hot-aiming. Low profile non-IC housing is for use in non-insulated areas, or where insulation is spaced at least 3” from housing. Supplied with vertically adjustable mounting brackets that accept ½” conduit, “C” channel bar hangers, linear bar hangers or telescoping Real Nail bar hangers.
Die Cast Self Flanged and Flush Mount reflectors utilize precision wound double torsion springs for tight, secure fit to ceiling Flange is same finish as reflector unless optional painted white flange is specified Flush Mount trims must be used with FMASQ4 Flush Mount Adapter.
Lampholder accommodates up to two (2) 2” captive accessory lenses.
GX10 twist lock socket with quick disconnect for simplified maintenance.
One 20W or 39W CMH MR16 lamp max. (See trim for max. lamp rating)
Acu-Aim™ precision geared hot-aiming achieves 370° rotation, 45° tilt Optimized center lamp beam optics translates lamp forward as it is aimed off nadir, insuring maximum light and low brightness Black aiming mechanism with shield prevents visibility into fixture and preserves dark aperture Shield hinges out of way to facilitate maintenance.
High Power Factor, electronic solid state ballast with less than 10% THD Features transient and short circuit protection Available in 120V or 277V.
UL and cUL listed for through-branch wiring, damp locations (wet location with approved trims) Product thermally protected Union made.
Rough-in section equipped with vertically adjustable mounting brackets that accept ½” conduit, “C” channels (HB-26 or HB-50), linear flat bars (LB-27) or 26” telescoping Real Nail bar hangers (HB-1).
Rated for 8 No. 12 AWG 90° C through branch circuit conductors and includes (5) ½”, (1) ¾”, and (4) Non-metallic sheathed cable knock-outs Push-In electrical connectors for field connections.
Black steel plaster frame and housing painted for visually dark interior V-Notch in plaster frame aids fixture alignment during installation Patent Pending Tru-Line™ Adjustment Mechanism featuring +/- ½” translation and +/- 45° aperture rotation aids fixture alignment after installation, prior to drywall.
½” – 7/8” ceiling standard For thicker ceilings, order CTA4SQ-125 (7/8”-1¼”), CTA4SQ-163 (1¼”- 1 5/8”) or CTA4SQ-200 (1 5/8” – 2”).
