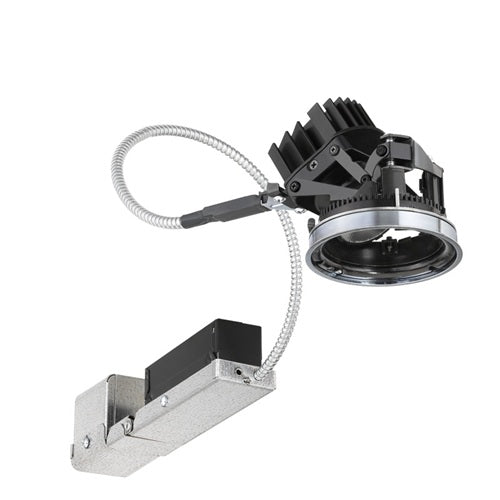

Juno Aculux AX2 AR G2 12LM 40K 80CRI 24D FPC 120 Recessed Lighting 2 inch LED Round Remodel Adjustable Housing, 1200 Lumens, 4000K Color Temperature, 80 CRI, Narrow Flood Beam, Phase Cut Dimming, 1% Dim, 120V

Juno Aculux AX2 AR G2 12LM 40K 80CRI 24D FPC 120 Recessed Lighting 2 inch LED Round Remodel Adjustable Housing, 1200 Lumens, 4000K Color Temperature, 80 CRI, Narrow Flood Beam, Phase Cut Dimming, 1% Dim, 120V

Price: $384.45
Price: $384.45

MODEL: Juno-AX2-AR-20051

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

LED Light Engine
  • Fixture to fixture color consistency within a 2-step MacAdam ellipse
  • 2700K, 3000K, 3500K, or 4000K color temperatures are available with 80 CRI minimum
  • 2700K and 3000K are also available with 90 CRI minimum.

Modular Optics
  • 45 degree cutoff to source and source image
  • Available with field interchangeable optics in 15 degree , 24 degree, 35 degree, and 45 degree distributions
  • Additional distributions of 20 degree, 30 degree, 40 degree, 50 degree, 55 degree, 60 degree, and 60 degree x 20 degree FWHM can be achieved with the use of the diffusing films and spot primary optic.

Adjustability
  • Patented Acu-Aim precision geared hot-aiming achieves 365? rotation, 40? tilt with any ceiling thickness from 1/2" to 1"
  • Acu-Aim translates light engine forward as it is aimed off nadir, ensuring maximum light and low brightness
  • Black aiming mechanism preserves dark aperture.

Trims Style
  • Self Flanged and Flangeless (drywall ceilings only) styles are available LED Driver Choice of two drivers to accommodate voltages from 120-277 volts AC at 50/60Hz
  • Dims as low as 1% with most incandescent and electronic low voltage dimmers or 0-10V dimmers
  • For a list of compatible dimmers, refer to ACLXLED2-DIM
  • Power Factor > 0.9
  • Field replaceable from above or below ceiling.
Life Rated for 50,000 hrs at 70% lumen maintenance.

Codes/Labels
  • UL and cUL listed for damp locations
  • Wet location listed with WET option
  • ENERGY STAR certified with select color temperatures and trims
  • Union made.

Remodel Installation Fixture installs from below the ceiling and secured to remodel ring.

Wiring
  • Includes (2) 1/2" knockouts equipped with pryout slots and are compatible with flexible electrical supply only
  • Supplied with quick connect electrical connectors.

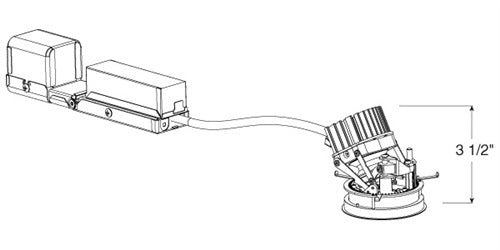

Ceiling Thickness 1/2" - 1 1/2" ceiling standard.

Warranty 5-year limited warranty.
