Home > Juno Lighting > Juno Aculux AX2 DR 12LM 40K 80CRI 35D ZT MVOLT Recessed Lighting 2 inch LED Remodel Standard Housing 1000 Lumens, 4000K Color Temperature, 80 CRI, Flood Beam, 120-277V 0-10V Dimmable Light
Juno Aculux AX2 DR 12LM 40K 80CRI 35D ZT MVOLT Recessed Lighting 2 inch LED Remodel Standard Housing 1000 Lumens, 4000K Color Temperature, 80 CRI, Flood Beam, 120-277V 0-10V Dimmable Light
Juno Aculux AX2 DR 12LM 40K 80CRI 35D ZT MVOLT Recessed Lighting 2 inch LED Remodel Standard Housing 1000 Lumens, 4000K Color Temperature, 80 CRI, Flood Beam, 120-277V 0-10V Dimmable Light
Ordering a large quantity?
Request a quote
Email or call us at 310-822-6500 for pricing
For project,
request a quote
description
PRODUCT DESCRIPTION

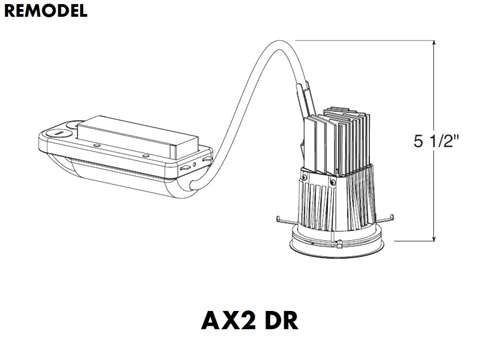

- Recessed LED downlight luminaire with 2? round aperture delivers up to 1040 lumens and is available with optical distributions approximating that of MR16 halogen lamps. Fixture has 50? visual cut-off for low aperture brightness. Low profile remodel housing is non-IC rated for use in non-insulated areas or where insulation is spaced at least 3? from housing.
PRODUCT SPECIFICATIONS
LED Light Engine- Consistent fixture to fixture color consistency within a 2-step MacAdam ellipse
- 2700K, 3000K, 3500K, or 4000K color temperatures are available with 80 CRI minimum
- 2700K and 3000K are also available with 90 CRI minimum.
- Available with field interchangeable optics in 18? Spot, 24? Narrow Flood, 35? Flood, and 45? wide flood distributions.
- Self Flanged and Flush Mount styles (drywall ceilings only) are available
- Flange is same finish as reflector unless optional painted white flange is specified
- For flush mount installations in drywall ceilings, specify the FMA2R adapter.
- Choice of two drivers to accommodate voltages from 120-277 volts AC at 50/60Hz
- Dedicated 120V (-1) driver is dimmable with most incandescent, magnetic low voltage, and electronic low voltage dimmers
- Universal Voltage (-U) driver is dimmable with most 0-10V protocol dimmers
- For a list of compatible dimmers, refer to ACLXLED2-DIM
- Power Factor > 0.9
- Field replaceable from above or below ceiling.
- Rated for 50,000 hrs at 70% lumen maintenance.
- 5 years from date of purchase on LED components
- Standard Juno Lighting Group product guarantee terms and conditions apply.
- UL and cUL listed for damp or wet locations depending on trim
- ENERGY STAR? Qualified with select color temperatures and trims
- Union made.
- Fixture installs from below the ceiling and secured to remodel ring.
- Includes (2) ?? knockouts equipped with pryout slots and are compatible with flexible electrical supply only
- Supplied with quick connect electrical connectors.
- ?? ? 1?? ceiling standard.
