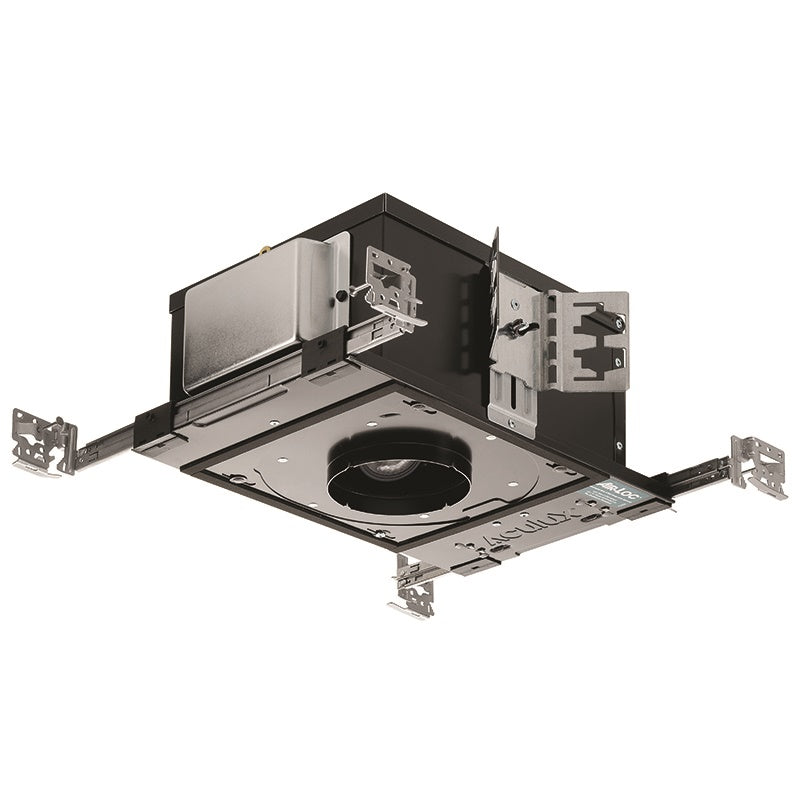

Juno Aculux AX3 A G4 08LM 40K 80CRI 12D EZ1 MVOLT ICAT Recessed Lighting 3 inch LED New Construction Adjustable Housing, 800 Lumens, 4000K Color Temperature, 800 Lumens, 12 Degree Spot, eldoLED 0-10V, 1% Dim, 120-277V

PRODUCT DESCRIPTION

Recessed adjustable LED luminaire produces up to 800 delivered lumens. Depending on the optic, the fixture has up to 50? visual cutoff and features precision geared hot-aiming. Sealed Air-Loc housing ensures maximum energy savings and controls plenum sound transmission. IC rated luminaires can be used in insulated or non-insulated areas.

PRODUCT DESCRIPTION

LED Light Engine

• Consistent fixture to fixture color within 3-step MacAdam ellipse
• 2700K, 3000K, 3500K, or 4000K color temperatures are available with 80 CRI minimum
• 2700K and 3000K also available with 90 CRI minimum.

Modular Optics

• Available with 12? Spot, 24? Narrow Flood, 35? Flood and 50? wide flood field interchangeable optics
• Additional distributions of 20?, 30?, 40?, 45? and 60? FWHM can be achieved with the use of the diffusing films and spot primary optic
• Patented (US Patent 8,950,911) auto-adjusting optic holder maximizes luminaire efficiency by maintaining optimal LED optic position
• Accommodates up to three (3) additional beam control lenses and/or filters.

Adjustability

• Acu-Aim? precision geared hot-aiming achieves 370? rotation, 45? tilt
• Optimized center beam optics translates light engine forward as it is aimed off nadir, ensuring maximum light and low brightness
• Black aiming mechanism preserves dark aperture.

Trims Style

• Check PDF spec for trims selection
• Trim Ring, Self Flanged and Flush Mount reflectors utilize torsion spring retention for tight, secure fit to ceiling
• Trim ring features beveled knife edge for clean ceiling interface
• Self Flanged reflectors with polished or optional white painted flange
• For flush mount installations in drywall ceilings use the FMA4 flush mount adapter
• For flush mount installations in wood, stone, or tile ceilings the FMA4-SC*** must be used (specify ceiling thickness and adapter finish).

LED Driver

• Choice of seven drivers to accommodate voltages from 120-277 volts AC
• Dedicated 120V (-1) driver is dimmable with most incandescent, magnetic low voltage, and electronic low voltage dimmers
• 120-277V Universal Voltage (-U) driver is dimmable with most 0-10V protocol dimmers
• 120-277V Lutron Hi-Lume A Series 3-wire (-L) driver is dimmable with 3-wire fluorescent controls and compatible with EcoSystem
• 120V Lutron Hi-Lume A Series 2-wire (-D) driver is dimmable with 2-wire forward phase dimmers containing a neutral wire
• 120-277V DALI Compatible Driver (-A)
• 120-277V DMX512 drivers are available with Flying Leads (-M) or RJ45 Interface Board (-MRJ). Note: DMX data cables must be run in series between fixtures and a DMX termination device (by others) should be used on last fixture in line
• For a list of compatible dimmers, refer to ACLXLED3-DIM
• Power Factor > 0.9
• Field replaceable from below or above ceiling.

Life

• Rated for 50,000 hrs at 70% lumen maintenance.

Warranty

• 5 years from date of purchase on LED components.

Codes and Labels

• UL and cUL listed for through branch wiring, damp locations. Wet location listed with certain trims
• Meets energy code Air Leakage requirements per ASTM E283
• ENERGY STAR Qualified with select trims
• IC rated luminaires with 90CRI light engine are certified to high efficacy requirements of California T24 with select color temperatures and trims
• IC housings are rated for direct contact with insulation
• IC408L and IC412L are compatible with spray foam insulation with an R-Value of 3.7 per inch or less
• Union made.
