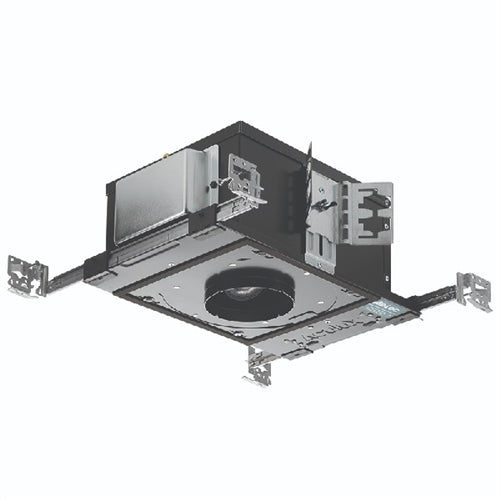

Juno Aculux AX3 D G4 08LM 35K 80CRI 35D FPC 120 ICAT Recessed Lighting 3 inch LED New Construction Housing, 800 Lumens, 3500K Color Temperature, 800 Lumens, 35 Degree Flood, Phase Cut Dimming, 5% Dim, 120V

Juno Aculux AX3 D G4 08LM 35K 80CRI 35D FPC 120 ICAT Recessed Lighting 3 inch LED New Construction Housing, 800 Lumens, 3500K Color Temperature, 800 Lumens, 35 Degree Flood, Phase Cut Dimming, 5% Dim, 120V

Price: $294.40
Price: $294.40

MODEL: Juno-AX3-D-32190

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT SPECIFICATIONS
LED Light Engine
  • 2-step MacAdam ellipse binning
  • 2700K, 3000K, 3500K, or 4000K CCTs available with 80 CRI minimum
  • 2700K and 3000K available with 90 CRI and 95 CRI minimum (R9>90).
Quiet, Glare-free Ceiling
  • 45 degree visual cutoff to source and source image.
Modular Optics
  • Available with 12 degree, 24 degree, 35 degree and 50 degree FWHM field interchangeable optics
  • 20 degree, 30 degree, 40 degree, 45 degree and 60 degree FWHM can be achieved with diffusing films and 12D optic
  • Patented (US Patent 8,950,911) autoadjusting optic holder maximizes efficiency by maintaining optimal LED optic position
  • AX3 D accommodates three (3) beam control lenses and/or filters
  • AX3 LPD accepts two (2) beam control lenses and/or filters.
LED Driver
  • Accommodates 120-277V input and multiple control protocols
  • For a list of compatible dimmers, refer to ACLXLED3-DIM
  • Power Factor > 0.9
  • Field replaceable from below or above ceiling.
Life Rated for 50,000 hrs at 70% lumen maintenance.
Buy American: This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FARS, DFARS and DOT.
Warranty - 5YR 5-year limited warranty.
Codes/Labels
  • UL and CUL listed for through branching, damp locations
  • Wet location listed with certain trims
  • ICAT rated luminaires meet energy code Air Leakage requirements per ASTM E283
  • ENERGY STAR Certified with select trims and housings
  • Can be used to comply with Title 24, Part 6 with select trims and housings
  • ICAT housings are rated for direct contact with insulation
  • AX3 08LM/12LM/15LM (ICAT option) are compatible with spray foam insulation with an R-Value of 3.7 per inch or less
  • Union made.

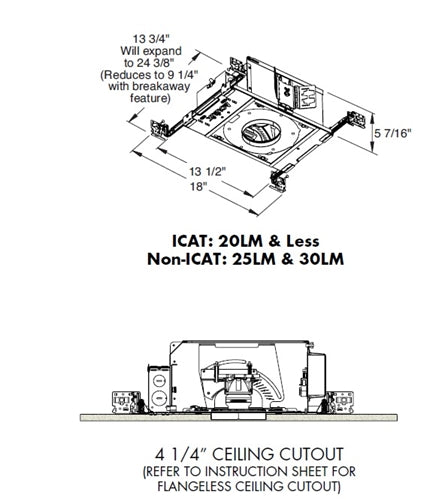

New Construction Mounting
  • Features patented (US Patent 8,038,113) Pro-VI bar hanger system
  • All fixtures except for 25LM ICAT also feature vertically adjustable mounting brackets (butterfly brackets)
  • Centerline indicators on plaster frame and patented (US Patent 8,277,090) Tru-Line Platform featuring +/- 1/2" translation aids fixture alignment after installation, prior to drywall. Junction Box Rated for 4 No. 12 AWG 90° C through branch circuit conductors and includes (6) 1/2", (1) 3/4", and (4) Non-metallic sheathed cable knock-outs
  • Push-in electrical connectors for field connections.
