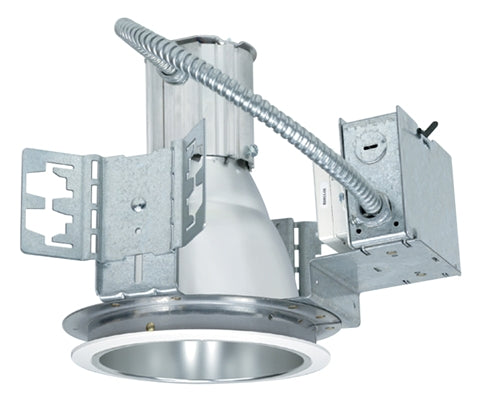

Juno Aculux Recessed Lighting CV6-118T-DB277 6" Vertical 18W Triple Tube CFL Downlight, with 277V Dimming Ballast

Name: Juno Aculux Recessed Lighting CV6-118T-DB277 6" Vertical 18W Triple Tube CFL Downlight, with 277V Dimming Ballast
Brand: Juno Lighting
SKU: Juno-CV6-118T-DB277
Availability: InStock

Ordering a large quantity? Request a quote

Email or call us at 310-822-6500 for pricing

For project, request a quote

View full details

description

PRODUCT SPECIFICATIONS
Lamp

One 18W triple tube compact fluorescent lamp CFTR18W/GX24q-2
4 pin electronic.

Socket Housing

Vented, extruded aluminum housing with heat dissipating fins
Single-position, keyed reflector attachment.

Ballast

120V thru 277V HPF Electronic with end-of-life lamp protection
347V HPF Electronic available in Canada
U.L. listed/CSA certified.

Trim Ring and Reflector

Sold separately
Refer to PDF spec for Trim selection

Labels

U.L. listed for through branch wiring and damp locations
Union made
CSA certified.

Testing

All reports are based on published industry procedures; field performance may differ from laboratory performance.

Product specifications subject to change without notice.

downloads

PDF Download Download 118T-DB277 Vertical CFL Downlight Baffled Trims Specification

PDF Download Download 118T-DB277 Vertical CFL Downlight Open Trims Specification

PDF Download Download 118T-DB277 Vertical CFL Wall Wash Open Trims Specification
