PRODUCT FAMILY SPECIFICATIONS

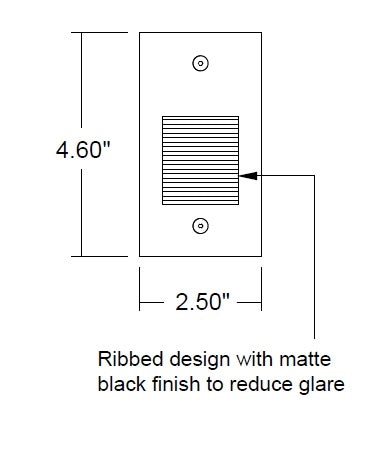

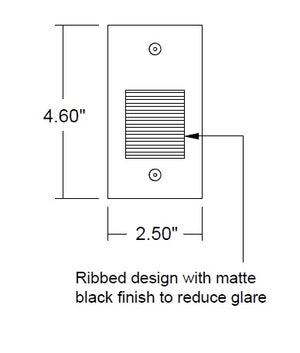

Housing
Housing
Metal faceplate assembly with inner die-cast reflector housing. Two exposed fasteners.
Lens
Extruded clear acrylic optic lens concealed in reflector housing.
Finish
Color for faceplate only. Available in five metal finishes with protective clear coat, seven polyester powder paint colors, or three antimicrobial polyester powder paint colors. A primer only finish is also available for field painting. Matte black finish always on reflector assembly.

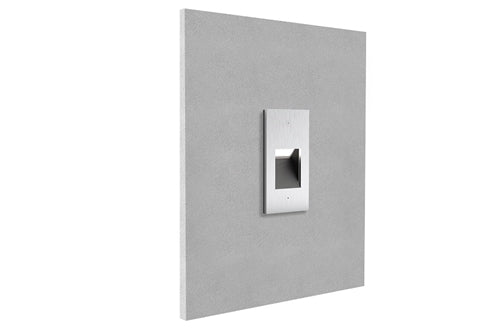

Mounting
Fixture designed to mount to a Steel City CX single gang deep junction box (by others) or equivalent.
Source
LED available with six static white color temperatures or six static color options all within a 3 MacAdam ellipse.
Circuiting
Single circuit
Dimming Driver
Integral electronic driver for 120 through 277v/50-60Hz input.
Standard 0-10V dimming to 5%. THD: <20%. PFC: > 0.90.
Complies to FCC CFR Title 47 Part 15, Class B at 120v and Class A at 277v EMI noise rating.
LED Life
Static White: LED light engine is rated for 60,000 hours (L70).
Static Color: LED light engine is rated for 60,000 hours (L70).
Environment
Suitable for dry or wet location, depending upon option selected.
Wet location from front of faceplate only. Components on backside of faceplate/recessed into wall are dry location.
Certification
ETL Certified to meet U.S. and Canadian standards conforming to UL1598 and CAN/CSA C22.2 No. 250.0
Buy American Act
This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations.
Warranty
5-year limited warranty.
Lens
Extruded clear acrylic optic lens concealed in reflector housing.
Finish
Color for faceplate only. Available in five metal finishes with protective clear coat, seven polyester powder paint colors, or three antimicrobial polyester powder paint colors. A primer only finish is also available for field painting. Matte black finish always on reflector assembly.
Mounting
Fixture designed to mount to a Steel City CX single gang deep junction box (by others) or equivalent.
Source
LED available with six static white color temperatures or six static color options all within a 3 MacAdam ellipse.
Circuiting
Single circuit
Dimming Driver
Integral electronic driver for 120 through 277v/50-60Hz input.
Standard 0-10V dimming to 5%. THD: <20%. PFC: > 0.90.
Complies to FCC CFR Title 47 Part 15, Class B at 120v and Class A at 277v EMI noise rating.
LED Life
Static White: LED light engine is rated for 60,000 hours (L70).
Static Color: LED light engine is rated for 60,000 hours (L70).
Environment
Suitable for dry or wet location, depending upon option selected.
Wet location from front of faceplate only. Components on backside of faceplate/recessed into wall are dry location.
Certification
ETL Certified to meet U.S. and Canadian standards conforming to UL1598 and CAN/CSA C22.2 No. 250.0
Buy American Act
This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT regulations.
Warranty
5-year limited warranty.
