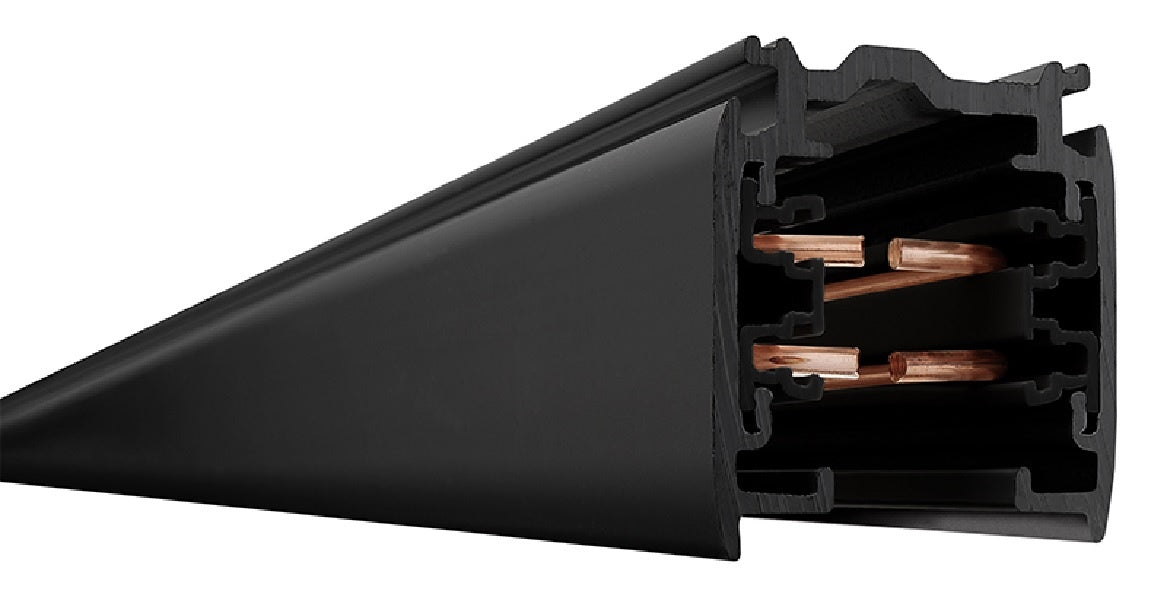

Juno HD Commercial Track Lighting HTEK44-BL (HTEK4 4FT BL) 4 ft HTEK Trac 277V 2-Circuit/2-Neutral, Black Color

PRODUCT DESCRIPTION
Juno HD Commercial 2-Circuit/2-Neutral Trac is ideal for dimming intensive applications. The independent neutrals guarantee that the two circuits are completely isolated. The potential for crosscircuit interference and neutral harmonics is completely eliminated to ensure trouble-free dimming. The HD Commercial 2-Circuit/2- Neutral Trac’s extruded aluminum construction and continuously crimped conductors ensure mechanical strength and electrical reliability. Its integral suspension rail and predrilled mounting holes simplify installation. A wide variety of Juno trac fixtures may be specified for use with the HD Commercial Trac system.

PRODUCT SPECIFICATIONS
Construction

• Rugged, heavy gauge extruded aluminum channel
• Firmly crimped insulation and conductors for superior mechanical strength and electrical reliability
• Integral mounting channel simplifies installation
• Integral polarity ridge ensures proper connector and fixture installation
• Fixtures supported by aluminum trac extrusion to provide maximum weight bearing capacity and to ensure reliable contact with electrical conductor.
• Note: Dead End must be purchased separately. Click here to purchase the dead end.

Electrical

• Two circuit operation with independent neutrals
• Each circuit is rated for 20 Amp, 277 Volt operation
• Trac extrusion serves as 100% capacity ground
• May be powered using a number of standard electrical feeds, or current limiting end feeds if necessitated by local codes.

Fixture Adapter

• System specific and assembled to trac fixture
• Integrally polarized construction to prevent reverse installation – only allows insertion in proper orientation
• Rotary circuit selector enables simple switching between circuits
• Integral on/off switch enables individual fixtures to be switched for servicing
• See compatible trac fixture selection on PDF Specification on page 2

Labels

• UL Listed
• cUL Listed
• Current Limiting Feeds approved by the California Energy Commission to meet requirements of Title 24
• Current Limiting Feeds comply with ASHRAE 90.1 and IECC Section 805.5.1.4 for trac current limiting.

TRAC SECTIONS SELECTION

Catalog Number	Description	Finish	Actual Length
HTEK44-BL	4’ Trac Section	Black	48”
HTEK44-WH	4’ Trac Section	White	48”
HTEK48-BL	8’ Trac Section	Black	96”
HTEK48-WH	8’ Trac Section	White	96”
HTEK412-BL	12’ Trac Section	Black	144”
HTEK412-WH	12’ Trac Section	White	144”
