Home > Juno Lighting > Juno IC4ALFW 07LM 40K 90CRI FL MVOLT ZT Recessed Lighting 4" IC LED Fire-Rated Internally Adjustable New Construction LED Downlight New Construction Housing, 700 Lumens, 4000K, 90 CRI, Flood Distribution, 120-277V, 0-10V, 10% Dim

  • Juno IC4ALFW 07LM 40K 90CRI FL MVOLT ZT Recessed Lighting 4" IC LED Fire-Rated Internally Adjustable New Construction LED Downlight New Construction Housing, 700 Lumens, 4000K, 90 CRI, Flood Distribution, 120-277V, 0-10V, 10% Dim
  • Juno IC4ALFW 07LM 40K 90CRI FL MVOLT ZT Recessed Lighting 4" IC LED Fire-Rated Internally Adjustable New Construction LED Downlight New Construction Housing, 700 Lumens, 4000K, 90 CRI, Flood Distribution, 120-277V, 0-10V, 10% Dim
1 2

Juno IC4ALFW 07LM 40K 90CRI FL MVOLT ZT Recessed Lighting 4" IC LED Fire-Rated Internally Adjustable New Construction LED Downlight New Construction Housing, 700 Lumens, 4000K, 90 CRI, Flood Distribution, 120-277V, 0-10V, 10% Dim

Juno IC4ALFW 07LM 40K 90CRI FL MVOLT ZT Recessed Lighting 4" IC LED Fire-Rated Internally Adjustable New Construction LED Downlight New Construction Housing, 700 Lumens, 4000K, 90 CRI, Flood Distribution, 120-277V, 0-10V, 10% Dim

Price: $249.31
Price: $249.31

MODEL: Juno-IC1-31236

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FEATURES
  • All-in-one 4" LED fire-rated downlight with integral internally adjustable light engine for downlighting and accent lighting in the same housing.
  • Versatile trim offering to address the needs of modern architectural designs.
Patent pending integrated low smoke intumescent barrier
  • Eliminates the need for installers to build additional boxes around fixtures to meet fire ratings
  • Provides protection against the spread of heat and flames into the ceiling cavity for 1 hour and 2 hour fire ratings
  • Reduces sound transmission between floors
Easy installation and servicability

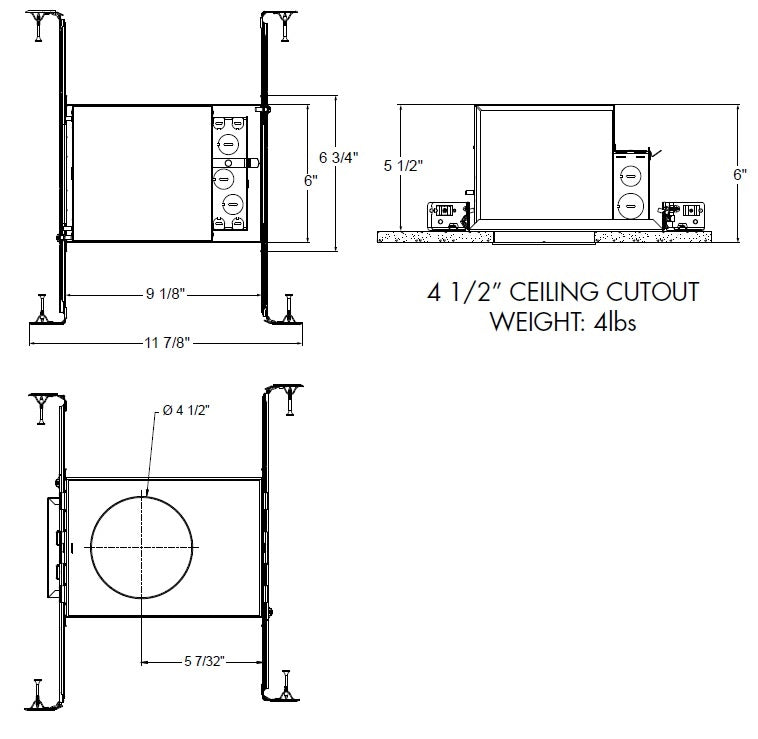

  • Low profile integrated LED downlight less than 6" in height
  • Easy to handle compact size weighing only 4 lbs
  • Installs into wood joists with Real Nail 3 bar hangers

PRODUCT APPLICATIONS
  • Residential and commercial applications including multi-family, hotels, assisted living, dormitories and other multi-level construction
  • Shallow plenum, new construction
  • IC rated - for direct contact with insulation
FIRE RESISTANCE SPECIFICATIONS
  • Conforms to UL263, ASTM STD E119 and CAN/ULC-S101 US and Canadian installations
  • May be used in fire resistance floor-ceiling and roof-ceiling designs per UL Fire Classified Directories CDHW and CDHW7
  • 1 hour fire rated floor/ceiling and roof/ceiling gypsum assembly per UL Design No. L500 & P500
  • 2 hour fire rated floor/ceiling gypsum assembly per UL Design No. L500, L505, L511, L536, L538, L541, L556, L577, M500, M510, M521 & M543
