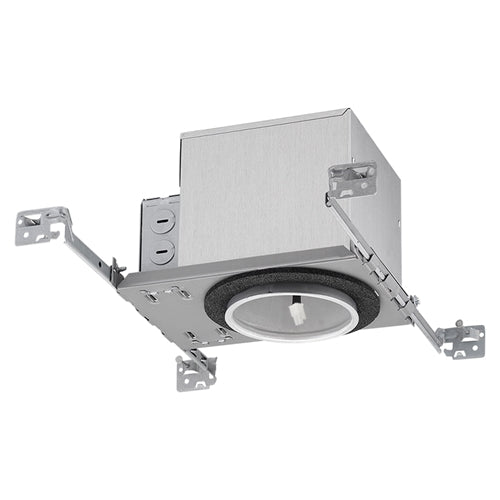

Juno IC1ALED G4 06LM MVOLT ZT Recessed Lighting 4" LED Adjustable New Construction IC Type Recessed Housing, Universal Driver 120-277V 0-10V Dimmable

Juno IC1ALED G4 06LM MVOLT ZT Recessed Lighting 4" LED Adjustable New Construction IC Type Recessed Housing, Universal Driver 120-277V 0-10V Dimmable

Price: $92.70
Price: $92.70

MODEL: Juno-IC1ALED-34

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote

When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.

View full details

description

PRODUCT DESCRIPTION
  • Dedicated LED, Air-Loc sealed new construction housing with adjustable accent light engine trim module

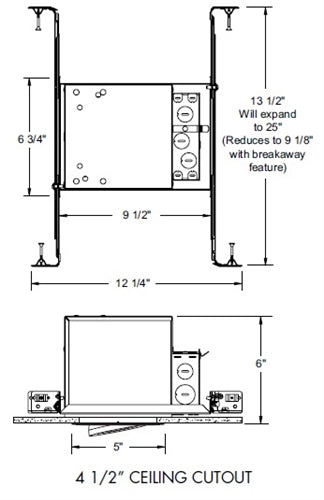

  • Double wall, shallow housing construction allows for fit in 2 x 6 construction
  • Can be completely covered with insulation
  • Fully sealed housing stops infiltration and exfiltration of air, reducing heating and air cooling costs without the use of additional gasket
  • LED light engine module is designed to provide 50,000 hours of life
  • 5 year limited warranty on LED components.
PRODUCT SPECIFICATIONS
LED Light Engine
  • Trim Module LED array attached to die cast trim provides superior heat transfer to ensure long life of the LED
  • Replaceable light engine incorporates the latest generation, high lumen output LED array
  • LEDs are binned within a 3-step Mac Adam Ellipse exceeding ENERGY STAR requirements for superior fixture to fixture color uniformity
  • 2700K, 3000K, 3500K and 4000K color temperatures with 90 CRI mininum
  • 440LED G4N Light engine module features a plug-in connector for easy installation with IC1ALED G4N housing.
Optics
  • Three field interchangeable, TIR optics available in 18 degree, 30 degree and 40 degree beam angles
  • Light engine trim module is supplied with a 30 degree optic installed
  • Module can accommodate one 2-inch diameter beam control lens or filter
  • Gimbal provides up to 35 degree tilt adjustment.
Trim
  • Die cast adjustable gimbal trim features shadow free knife edge to blend seamlessly into ceiling
  • Available in multiple finishes - White, Black, Satin Chrome and Aged Bronze.
LED Driver
  • Choice of dedicated 120 volt driver or universal voltage drivers that accommodate input voltages from 120-277 volts AC at 50/60Hz
  • Power factor > 0.9 at 120V input
  • 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
  • Universal voltage drivers are dimmable with the use of most 0-10V wall box dimmers
  • For a list of compatible dimmers, see JUNOICLED-DIM
  • Mounted inside housing for easy access from below ceiling.
Life Rated for 50,000 hours at 70% lumen maintenance.
Labels
  • ENERGY STAR Certified
  • Certified to the high efficiency requirements of California T24 JA8-2016
  • UL listed for U.S. and Canada through-branch wiring, damp locations
  • Union made
  • UL and cUL.

downloads

PDF Download Download PDF Specification
