Juno IC1RALED G4 06LM 120 FRPC Recessed Lighting 4" LED Adjustable Remodel IC Type Recessed Housing, Dedicated Driver 120V ELV Dimmable

Juno IC1RALED G4 06LM 120 FRPC Recessed Lighting 4" LED Adjustable Remodel IC Type Recessed Housing, Dedicated Driver 120V ELV Dimmable

Price: $75.70
Price: $75.70

MODEL: Juno-IC1ALED-37

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote

When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.

View full details

description

PRODUCT DESCRIPTION

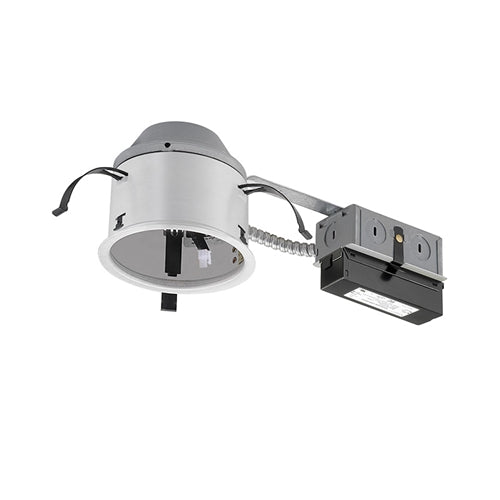

  • Dedicated LED, Air-Loc remodel housing with adjustable accent light engine trim module
  • Shallow housing allows for fit in 2 x 6 construction
  • IC remodel housing for remodel application where back side of ceiling is not accessible
  • Installs through an opening in the ceiling from below
  • Secured in place by factory installed remodel springs
  • Can be completely covered with insulation
  • LED light engine module is designed to provide 50,000 hours of life
  • 5 year limited warranty on LED components.
PRODUCT SPECIFICATIONS
LED Light Engine Trim Module
  • LED array attached to die cast trim provides superior heat transfer to ensure long life of the LED
  • Replaceable light engine incorporates the latest generation, high lumen output LED array
  • LEDs are binned within a 3-step Mac Adam Ellipse exceeding ENERGY STAR requirements for superior fixture to fixture color uniformity
  • 2700K, 3000K, 3500K and 4000K color temperatures with 90 CRI mininum
  • 440LED G4N Light engine module features a plug-in connector for easy installation with IC1RALED G4N housing.
Optics
  • Three field interchangeable TIR optics available in 18 degree, 30 degree and 40 degree beam angles
  • Light engine trim module is supplied with a 30 degree optic installed
  • Module can accommodate one 2-inch diameter beam control lens or filter
  • Gimbal provides up to 35 degree tilt adjustment.
Trim
  • Die cast adjustable gimbal trim features shadow free knife edge to blend seamlessly into ceiling
  • Available in multiple finishes - White, Black, Satin Chrome and Aged Bronze.
LED Driver
  • Choice of dedicated 120 volt driver or universal voltage drivers that accommodate input voltages from 120-277 volts AC at 50/60Hz
  • Power factor > 0.9 at 120V input
  • 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
  • Universal voltage drivers are dimmable with the use of most 0-10V wall box dimmers
  • For a list of compatible dimmers, see JUNOICLED-DIM
  • Mounted on the j-box for easy access and cool operation.
Life Rated for 50,000 hours at 70% lumen maintenance.
Labels
  • ENERGY STAR Certified
  • Certified to the high efficiency requirements of California T24 JA8-2016
  • UL listed for U.S. and Canada through-branch wiring, damp locations
  • Union made
  • UL and cUL.

downloads

PDF Download Download PDF Specification
