Juno IC1JBPF 07LM MVOLT ZT10 Recessed Lighting 4" IC LED Fire-Rated Red Series New Construction Housing, 700 Lumens, 120-277V, 0-10V, 10% Dim

Juno IC1JBPF 07LM MVOLT ZT10 Recessed Lighting 4" IC LED Fire-Rated Red Series New Construction Housing, 700 Lumens, 120-277V, 0-10V, 10% Dim

Price: $84.35
Price: $84.35

MODEL: Juno-IC1JBPF-31260

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT DESCRIPTION

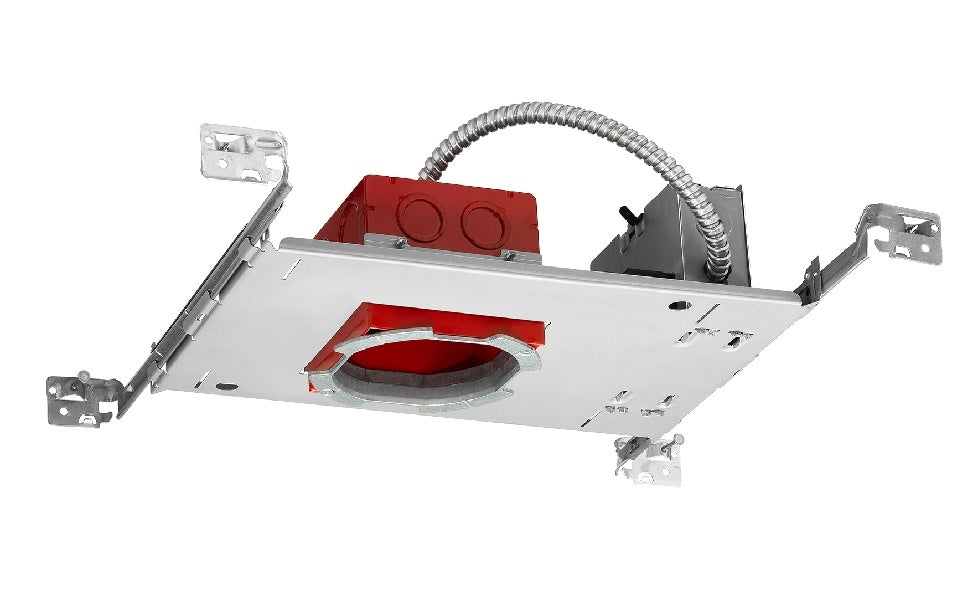

4" IC LED Air-Loc new construction junction box plaster frame housing with energy efficient LED downlight trim module for a complete downlight solution. May be installed in maximum 2 hour fire-rated ceiling assemblies per International Building Code Section 714. Can be completely covered with insulation. Dimmable. Designed to provide 50,000 hours of life. 5 year limited warranty on LED components.

PRODUCT SPECIFICATIONS
LED Light Engine Trim Module
  • LED array attached to die cast trim provides superior heat transfer to ensure long life of the LED
  • LEDs are binned within a 3-step MacAdam Ellipse exceeding ENERGY STAR requirements for superior fixture to fixture color uniformity
  • 2700K, 3000K, 3500K and 4000K color temperatures with 90 CRI minimum
  • Features a plug-in connector for easy installation with IC1JBPF housing.
LED Driver
  • Choice of dedicated 120 volt driver or universal voltage drivers that accommodate input voltages from 120-277 volts AC at 50/60Hz
  • Power factor > 0.9 at 120V input
  • 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
  • Universal voltage drivers are dimmable with the use of most 0-10V wall box dimmers
  • For a list of compatible dimmers, see JUNOICLED-DIM.
Life
  • Rated for 50,000 hours at 70% lumen maintenance.
Labels
  • ENERGY STAR Certified
  • Certified to the high efficacy requirements of California T24
  • Assembly ETL listed to UL1598 for US and Canadian through branch wiring, damp location
  • Suitable for wet locations (indoor covered ceiling)
  • ETL listed to UL514A
  • Air-Loc.
