Home > Juno Lighting > Juno IC1LED G4 09LM 35K 90CRI 120 FRPC Recessed Lighting 4" LED IC Type New Construction Housing 900 Lumens, 3500K Color Temperature, Dedicated Driver 120V

  • Juno IC1LED G4 09LM 35K 90CRI 120 FRPC Recessed Lighting 4" LED IC Type New Construction Housing 900 Lumens, 3500K Color Temperature, Dedicated Driver 120V
  • Juno IC1LED G4 09LM 35K 90CRI 120 FRPC Recessed Lighting 4" LED IC Type New Construction Housing 900 Lumens, 3500K Color Temperature, Dedicated Driver 120V
1 2

Juno IC1LED G4 09LM 35K 90CRI 120 FRPC Recessed Lighting 4" LED IC Type New Construction Housing 900 Lumens, 3500K Color Temperature, Dedicated Driver 120V

Juno IC1LED G4 09LM 35K 90CRI 120 FRPC Recessed Lighting 4" LED IC Type New Construction Housing 900 Lumens, 3500K Color Temperature, Dedicated Driver 120V

Price: $149.29
Price: $149.29

MODEL: Juno-IC1LED-1232

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
free shiping details >>
Request a Quote
Ordering a large quantity? Request a quote

When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.

View full details

description

PRODUCT DESCRIPTION

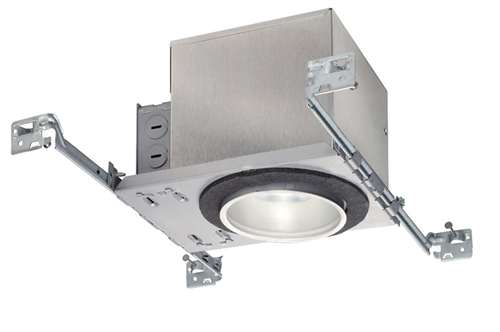

  • Dedicated LED, Air-Loc sealed new construction housing with integral light engine
  • Double wall, shallow housing construction allows for fit in 2 x 6 construction
  • Can be completely covered with insulation
  • Fully sealed housing stops infiltration and exfiltration of air, reducing heating and air cooling costs without the use of additional gaskets
  • LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
  • 5 year limited warranty on LED components.

PRODUCT SPECIFICATIONS
LED Light Engine
  • LED array attached to high purity aluminum, thermally conductive inner housing provides superior heat transfer to ensure long life of the LED
  • Replaceable light engine mounts directly to inner housing assembly and incorporates the latest generation, high lumen output LED array
  • LEDs are binned within a 3-step MacAdam Ellipse exceeding ENERGY STAR requirements for superior fixture to fixture color uniformity
  • 2700K, 3000K, 3500K, or 4100K color temperatures available
  • 90 CRI minimum.
Aesthetic Trim Selections
  • Compatible with wide selection of existing Juno trims
  • See PDF spec for trim selection.
LED Driver
  • Choice of dedicated 120 volt driver or universal voltage driver that accommodates input voltages from 120-277 volts AC at 50/60Hz
  • Power factor > 0.9 at 120V input
  • 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
  • Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers
  • For a list of compatible dimmers, click here
  • Mounted inside housing for easy access from below ceiling.
Life
  • Rated for 50,000 hours at 70% lumen maintenance.
Labels
  • ENERGY STAR Qualified when used with select trims
  • Certified to the high efficacy requirements of California T24 with select trims
  • UL listed for U.S. and Canada through-branch wiring, damp locations
  • Union made
  • UL and cUL.
Testing
  • All reports are based on published industry procedures; field performance may differ from laboratory performance.
Product specifications subject to change without notice.
