Home > Juno Lighting > Juno IC1LEDFW 14LM 30K 90CRI 120 FRPC Recessed Lighting 4" IC LED Fire-Rated New Construction LED Housing, 3000K, 90 CRI, 45 Degrees Distribution, 120V Forward/Reverse Phase Cut, 5% Dim

  • Juno IC1LEDFW 14LM 30K 90CRI 120 FRPC Recessed Lighting 4" IC LED Fire-Rated New Construction LED Housing, 3000K, 90 CRI, 45 Degrees Distribution, 120V Forward/Reverse Phase Cut, 5% Dim
  • Juno IC1LEDFW 14LM 30K 90CRI 120 FRPC Recessed Lighting 4" IC LED Fire-Rated New Construction LED Housing, 3000K, 90 CRI, 45 Degrees Distribution, 120V Forward/Reverse Phase Cut, 5% Dim
1 2

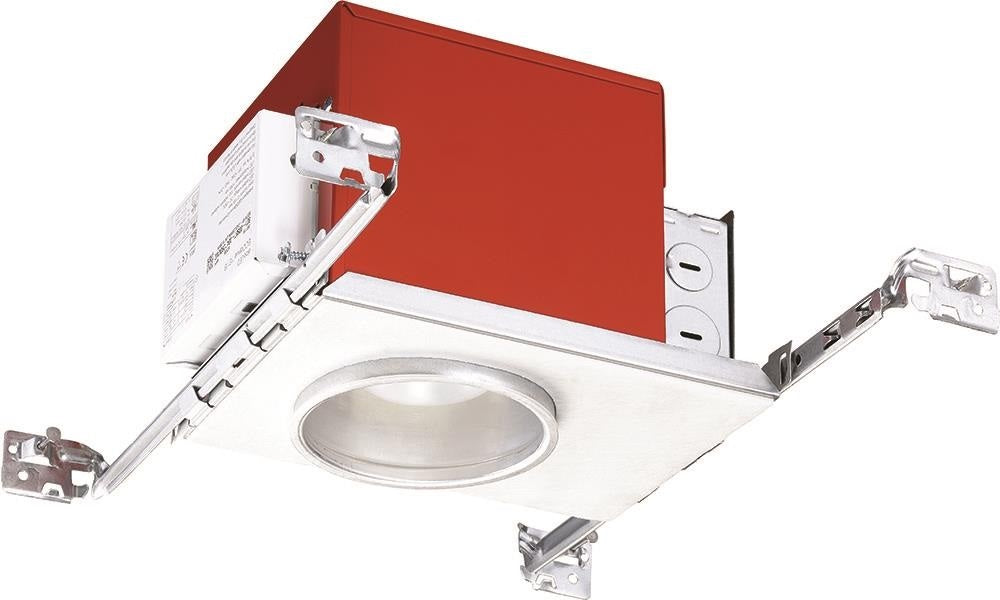

Juno IC1LEDFW 14LM 30K 90CRI 120 FRPC Recessed Lighting 4" IC LED Fire-Rated New Construction LED Housing, 3000K, 90 CRI, 45 Degrees Distribution, 120V Forward/Reverse Phase Cut, 5% Dim

Juno IC1LEDFW 14LM 30K 90CRI 120 FRPC Recessed Lighting 4" IC LED Fire-Rated New Construction LED Housing, 3000K, 90 CRI, 45 Degrees Distribution, 120V Forward/Reverse Phase Cut, 5% Dim

Price: $211.53
Price: $211.53

MODEL: Juno-IC1LEDFW-33278

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FAMILY FEATURES
Dedicated small aperture 4" LED performance fire-rated downlight solution with integral light engine delivering up to 1400 lumens and
compatible with a comprehensive selection of standard Juno trims
Patent pending integrated low smoke intumescent barrier
  • Eliminates the need for installers to build additional boxes around fixtures to meet fire ratings
  • Provides protection against the spread of heat and flames into the ceiling cavity for 1 hour or 2 hour fire ratings
  • Reduces sound transmission between floors
Easy installation and serviceability

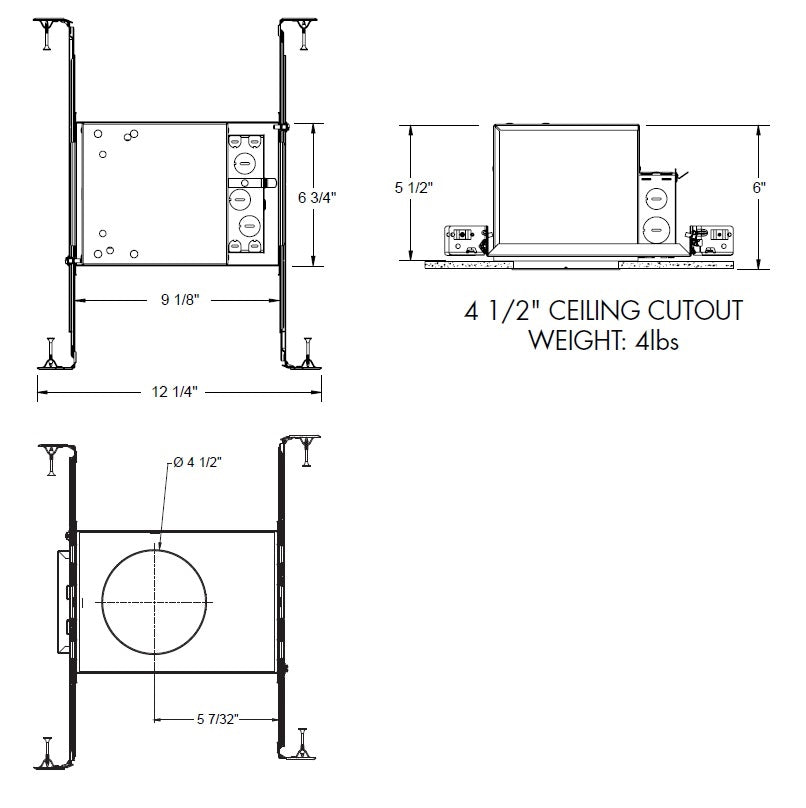

  • Low profile integrated LED downlight less than 6" in height
  • Easy to handle compact size weighing only 4 lbs
  • Installs into wood joists with Real Nail 3 bar hangers
PRODUCT APPLICATIONS
  • Residential and commercial applications including multi-family, hotels, assisted living, dormitories and other multi-level construction
  • Shallow plenum, new construction
  • IC rated - for direct contact with insulation
FIRE RESISTANCE SPECIFICATIONS
  • Conforms to UL263, ASTM STD E119 and CAN/ULC-S101 for US and Canadian installations
  • May be used in fire resistance floor-ceiling and roof-ceiling designs per UL Fire Classified Directories CDHW and CDHW7
  • 1 hour fire rated floor/ceiling and roof/ceiling gypsum assembly per UL Design No. L500 & P500
  • 2 hour fire rated floor/ceiling gypsum assembly per UL Design No. L500, L505, L511, L536, L538, L541, L556, L577, M500, M510, M521 & M543
