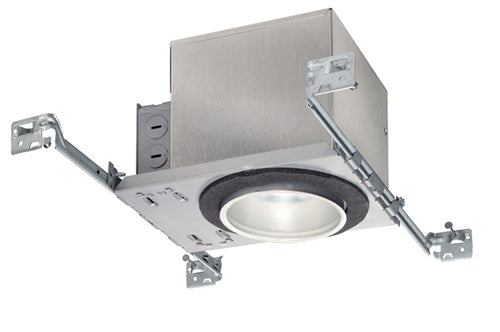

Juno Recessed Lighting IC1LEDG4-41K-U 4" LED IC Type New Construction Housing 600 Lumens, 4100K Color Temperature, Universal Driver 120-277V

Juno Recessed Lighting IC1LEDG4-41K-U 4" LED IC Type New Construction Housing 600 Lumens, 4100K Color Temperature, Universal Driver 120-277V

Price: $160.87
Price: $160.87

MODEL: Juno-IC1LEDG4-41K-U

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
free shiping details >>
Request a Quote
Ordering a large quantity? Request a quote

When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.

View full details

description

Juno IC1LEDG4 Series, dedicated 4-inch LED new construction housing with integral light engine and choice of dimmable drivers: 11.5W nominal dedicated 120 volt driver with forward phase and ELV dimming or 12.6W nominal universal 120V-277V driver with 0-10V dimming. Shallow housing construction. IC housing designed for use with IC or non-IC construction. Wide flood optic provided as standard. 90 CRI minimum.

Features & Benefits

  • Dedicated LED, Air-Loc® sealed new construction housing with integral light engine
  • Double wall, shallow housing construction allows for fit in 2 x 6 construction
  • Can be completely covered with insulation
  • Fully sealed housing stops infiltration and exfiltration of air, reducing heating and air cooling costs without the use of additional gaskets
  • LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
  • 5 year limited warranty on LED components.
LED Light Engine
  • LED array attached to high purity aluminum, thermally conductive inner housing and heat sink provides superior heat transfer to ensure long life of the LED
  • Replaceable light engine mounts directly to inner housing assembly and incorporates the latest generation, high lumen output LED array
  • LEDs are binned to standards that exceed ENERGY STAR® requirements yielding superior fixture to fixture color uniformity
  • 2700K, 3000K, 3500K, or 4100K color temperatures available
  • 90 CRI minimum.
Optical System
  • Computer-optimized reflector design with high reflectance finish coupled with a high transmission diffusing lens conceals the LEDs and produces uniform aperture luminance.
  • Deep regression of lens produces a low glare, efficient system that can produce over 600 lumens with select trims using less than 12W.
Aesthetic Trim Selections Compatible with wide selection of existing Juno trims
Shadow free, knife edge design blends seamlessly into ceiling.
LED Driver
  • Choice of dedicated 120 volt driver or universal voltage driver that accommodates input voltages from 120-277 volts AC at 50/60Hz
  • Power factor > 0.9 at 120V input
  • 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
  • Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers
    Mounted inside housing for easy access from below ceiling.
Life Rated for 50,000 hours at 70% lumen maintenance.
Labels
  • ENERGY STAR® qualified to luminaires V1.1 requirements when used with select trims
  • Certified to the high efficiency requirements of California T24-2008 with select trims
  • UL listed for U.S. and Canada through-branch wiring, wet locations (covered ceilings)
  • Union made
  • UL and cUL.
Housing
  • Designed for use in IC (insulated ceiling) or non-IC construction
  • Aluminum housing sealed for Air-Loc® compliance
  • Housing is vertically adjustable to accommodate up to a 11⁄2” ceiling thickness.
Junction Box
  • Pre-wired junction box provided with (6) 1⁄2” and (1) 3⁄4” knockouts, (4) knockouts for 12/2 or 14/2 NM cable and ground wire
  • UL listed and cUL listed for through-branch wiring, maximum 6 #12 branch circuit conductors
  • Junction box provided with removable access plates
  • Knockouts equipped with pryout slots
  • Quick connect electrical connectors supplied as standard for fast, secure installation.
Mounting Frame
  • 22-gauge die-formed galvanized steel mounting frame
  • Rough-in section (junction box, mounting frame, housing and bar hangers) fully assembled for ease of installation.
Real Nail 3 Bar Hangers
  • Telescoping Real Nail 3® system permits quick placement of housing anywhere within 24” O.C. joists or suspended ceilings
  • Includes removable nail for repositioning of fixture in wood joist construction
  • Integral T-bar notch and clip for suspended ceilings

Ordering Information
