Juno IC1RLED G4 09LM 30K 90CRI 120 FRPC Recessed Lighting 4" LED IC Type Remodel Housing 900 Lumens, 3000K Color Temperature, Dedicated Driver 120V
Juno IC1RLED G4 09LM 30K 90CRI 120 FRPC Recessed Lighting 4" LED IC Type Remodel Housing 900 Lumens, 3000K Color Temperature, Dedicated Driver 120V
Regular price
Price:
$127.08
Regular price
Price:
Sale price
$127.08
Unit price
per
MODEL: Juno-IC1RLED-1252
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
free shiping
details >>
Ordering a large quantity?
Request a quote
When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.
description
PRODUCT DESCRIPTION

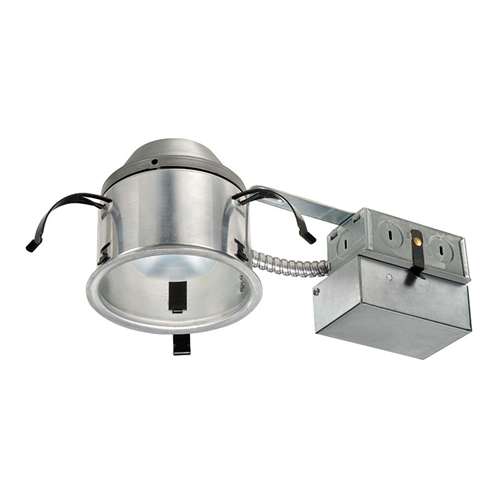

Dedicated LED, Air-Loc remodel housing with integral light engine. Shallow housing allows for fit in 2 x 6 construction. IC remodel housing for remodel application where back side of ceiling is not accessible. Installs through an opening in the ceiling from below. Secured in place by factory installed remodel springs. Can be completely covered with insulation. LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims. 5 year limited warranty on LED components.
PRODUCT SPECIFICATIONS
LED Light Engine
Dedicated LED, Air-Loc remodel housing with integral light engine. Shallow housing allows for fit in 2 x 6 construction. IC remodel housing for remodel application where back side of ceiling is not accessible. Installs through an opening in the ceiling from below. Secured in place by factory installed remodel springs. Can be completely covered with insulation. LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims. 5 year limited warranty on LED components.
PRODUCT SPECIFICATIONS
LED Light Engine
- LED array attached to high purity aluminum, thermally conductive housing provides superior heat transfer to ensure long life of the LED
- Replaceable light engine mounts directly to housing assembly and incorporates the latest generation, high lumen output LED array
- LEDs are binned within a 3-step MacAdam Ellipse exceeding ENERGY STAR requirements for superior fixture to fixture color uniformity
- 2700K, 3000K, 3500K, or 4000K color temperatures available
- 90 CRI minimum.
LED Driver
- Choice of dedicated 120 volt (120) driver or universal voltage (MVOLT) drivers that accommodate input voltages from 120-277 volts AC at 50/60Hz
- Power factor > 0.9 at 120V input
- 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
- Universal voltage drivers are dimmable with the use of most 0-10V wall box dimmers
- For a list of compatible dimmers, see JUNOICLED-DIM
- Mounted on the j-box for easy access and cool operation.
Life Rated for 50,000 hours at 70% lumen maintenance.
Labels- ENERGY STAR Certified when used with select trims
- Certified to the high efficacy requirements of California T24 JA8-2016 with select trims
- UL listed for U.S. and Canada damp locations
- Union made
- UL and cUL.
