Home > Juno Lighting > Juno Recessed Lighting IC1RLEDG4-35K-1 4" LED IC Type Remodel Housing 600 Lumens, 3500K Color Temperature, Dedicated Driver 120V

  • Juno Recessed Lighting IC1RLEDG4-35K-1 4" LED IC Type Remodel Housing 600 Lumens, 3500K Color Temperature, Dedicated Driver 120V
  • Juno Recessed Lighting IC1RLEDG4-35K-1 4" LED IC Type Remodel Housing 600 Lumens, 3500K Color Temperature, Dedicated Driver 120V
1 2

Juno Recessed Lighting IC1RLEDG4-35K-1 4" LED IC Type Remodel Housing 600 Lumens, 3500K Color Temperature, Dedicated Driver 120V

Juno Recessed Lighting IC1RLEDG4-35K-1 4" LED IC Type Remodel Housing 600 Lumens, 3500K Color Temperature, Dedicated Driver 120V

Price: $121.10
Price: $121.10

MODEL: Juno-IC1RLEDG4-35K-1

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
free shiping details >>
Request a Quote
Ordering a large quantity? Request a quote

When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.

View full details

description

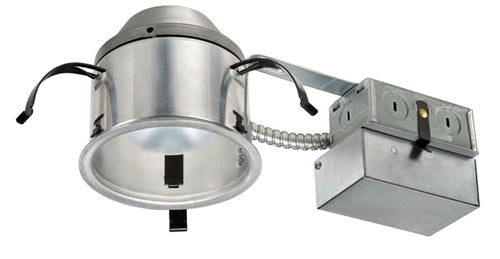

Juno IC1RLEDG4 Series, dedicated 4-inch LED remodel housing with integral light engine and choice of dimmable drivers: 11.5W nominal dedicated 120 volt driver with forward phase and ELV dimming or 12.6W nominal universal 120V-277V driver with 0-10V dimming. Shallow housing construction. IC housing designed for use with IC or non-IC construction. Wide flood optic provided as standard. 90 CRI minimum.

Features & Benefits

  • Dedicated LED, Air-Loc® remodel housing with integral light engine
  • Shallow housing allows for fit in 2 x 6 construction
  • IC remodel housing for remodel application where back side of ceiling is not accessible
  • Installs through an opening in the ceiling from below
  • Secured in place by factory installed remodel springs
  • Can be completely covered with insulation
  • LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
  • 5 year limited warranty on LED components.
LED Light Engine
  • LED array attached to high purity aluminum, thermally conductive inner housing and heat sink provides superior heat transfer to ensure long life of the LED
  • Replaceable light engine mounts directly to inner housing assembly and incorporates the latest generation, high lumen output LED array
  • LEDs are binned to standards that exceed ENERGY STAR® requirements yielding superior fixture to fixture color uniformity
  • 2700K, 3000K, 3500K, or 4100K color temperatures available
  • 90 CRI minimum.
Optical System
  • Computer-optimized reflector design with high reflectance finish coupled with a high transmission diffusing lens conceals the LEDs and produces uniform aperture luminance.
  • Deep regression of lens produces a low glare, efficient system that can produce over 600 lumens with select trims using less than 12W.
Aesthetic Trim Selections Compatible with wide selection of existing Juno trims
Shadow free, knife edge design blends seamlessly into ceiling.
LED Driver
  • Choice of dedicated 120 volt driver or universal voltage driver that accommodates input voltages from 120-277 volts AC at 50/60Hz
  • Power factor > 0.9 at 120V input
  • 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
  • Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers
    Mounted inside housing for easy access from below ceiling.
Life Rated for 50,000 hours at 70% lumen maintenance.
Labels
  • ENERGY STAR® qualified to luminaires V1.1 requirements when used with select trims
  • Certified to the high efficiency requirements of California T24-2008 with select trims
  • UL listed for U.S. and Canada through-branch wiring, wet locations (covered ceilings)
  • Union made
  • UL and cUL.
Housing
  • Designed for use in IC (insulated ceiling) or non-IC construction
  • Aluminum housing sealed for Air-Loc® compliance
  • Remodel springs accommodate up to 1 1⁄2” ceiling thickness.
Junction Box
  • Pre-wired junction box provided with (5) 1⁄2” knockouts, (4) knockouts for 12/2 or 14/2 NM cable and ground wire
  • Knockouts equipped with pryout slots
  • Quick connect electrical connectors supplied as standard for fast, secure installation.

Ordering Information
