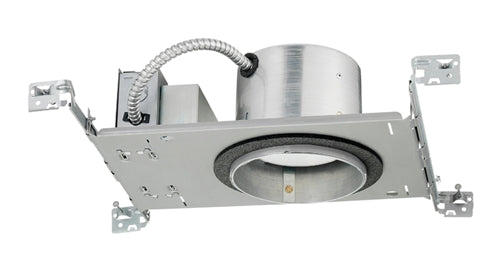

Juno Recessed Lighting IC20LEDG3-3K-U 5" LED IC Type New Construction Housing 600 Lumens, 3000K Color Temperature, Universal Driver 120-277V

Description

Dedicated 5" LED new construction housing with integral 10.5W or 12W nominal light engine, with choice of dimmable  drivers: dedicated 120 volt driver or universal 120V-277V driver. 2700K. 83 CRI typical. Wide flood optic shipped as  standard. Shallow, IC housing designed for use in 2x6 IC or non-IC construction. Ceiling cutout 5 5/8" dia.

Features & Benefits

• Dedicated LED, Air-Loc® sealed new construction housing with integral light engine
• Shallow housing allows for fit in 2 x 6 construction
• Can be completely covered with insulation
• Fully sealed housing stops infiltration and exfiltration of air, reducing heating and air cooling costs without the use of additional gaskets
• LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
• 5 year limited warranty on LED components.


LED Light Engine	LED array integrated to one piece high purity aluminum, thermally conductive housing provides uninterrupted heat transfer to ensure long life of the LED Replaceable light engine mounts directly to housing and incorporates the latest generation, high lumen output LED array LEDs are binned to standards that exceed ENERGY STAR® requirements yielding superior fixture to fixture color uniformity 2700K, 3000K, 3500K, or 4100K color temperatures available 83 CRI typical.
Optical System	Computer-optimized reflector design with high reflectance white finish coupled with a high transmission diffusing lens conceals the LEDs and produces uniform aperture luminance Wide flood distribution shipped as standard with optional optic accessories available and sold separately.
Aesthetic Trim Selections	Compatible with wide selection of existing Juno trims Shadow free, knife edge design blends seamlessly into ceiling. Trims are wet location approved for covered applications.
LED Driver	Choice of dedicated 120 volt driver or universal voltage driver that accommodates input voltages from 120-277 volts AC at 50/60Hz Power factor > 0.9 at 120V input 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers Mounted between the j-box and housing for easy access and cool operation.
Life	Rated for 50,000 hours at 70% lumen maintenance.
Labels	ENERGY STAR® qualified to luminaires V1.1 requirements when used with select baffle and cone trims Certified to the high efficiency requirements of California T24-2008 with select trims UL listed for U.S and Canada through-branch wiring, damp locations Union made UL and cUL.
Housing	Designed for use in IC (insulated ceiling) or non-IC construction Aluminum housing sealed for Air-Loc® compliance Housing is vertically adjustable to accommodate up to a 2” ceiling thickness.
Junction Box	Pre-wired junction box provided with (5) 1⁄2” and (1) 3⁄4” knockouts, (4) knockouts for 12/2 or 14/2 NM cable and ground wire UL listed and cUL listed for through-branch wiring, maximum 8 #12 branch circuit conductors Junction box provided with removable access plates Knockouts equipped with pryout slots Quick connect electrical connectors supplied as standard for fast, secure installation.
Mounting Frame	22-gauge die-formed galvanized steel mounting frame Rough-in section (junction box, mounting frame, housing and bar hangers) fully assembled for ease of installation.
Real Nail 3 Bar Hangers	Telescoping Real Nail 3® system permits quick placement of housing anywhere within 24” O.C. joists or suspended ceilings Includes removable nail for repositioning of fixture in wood joist construction Integral T-bar notch and clip for suspended ceilings
