Home > Juno Lighting > Juno IC20RLED G4 09LM 35K 90CRI MVOLT EZ1 Recessed Lighting 5" LED IC Type Remodel Housing 900 Lumens, 3500K Color Temperature, Universal Driver 120-277V, eldoLED 0-10V, 1% Dim

  • Juno IC20RLED G4 09LM 35K 90CRI MVOLT EZ1 Recessed Lighting 5" LED IC Type Remodel Housing 900 Lumens, 3500K Color Temperature, Universal Driver 120-277V, eldoLED 0-10V, 1% Dim
  • Juno IC20RLED G4 09LM 35K 90CRI MVOLT EZ1 Recessed Lighting 5" LED IC Type Remodel Housing 900 Lumens, 3500K Color Temperature, Universal Driver 120-277V, eldoLED 0-10V, 1% Dim
  • Juno IC20RLED G4 09LM 35K 90CRI MVOLT EZ1 Recessed Lighting 5" LED IC Type Remodel Housing 900 Lumens, 3500K Color Temperature, Universal Driver 120-277V, eldoLED 0-10V, 1% Dim
1 3

Juno IC20RLED G4 09LM 35K 90CRI MVOLT EZ1 Recessed Lighting 5" LED IC Type Remodel Housing 900 Lumens, 3500K Color Temperature, Universal Driver 120-277V, eldoLED 0-10V, 1% Dim

Juno IC20RLED G4 09LM 35K 90CRI MVOLT EZ1 Recessed Lighting 5" LED IC Type Remodel Housing 900 Lumens, 3500K Color Temperature, Universal Driver 120-277V, eldoLED 0-10V, 1% Dim

Price: $169.69
Price: $169.69

MODEL: Juno-IC20RLED-15377

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote

When ordering this fixture, you will get the newest generation. Different generations cannot be mixed.

View full details

description

PRODUCT DESCRIPTION

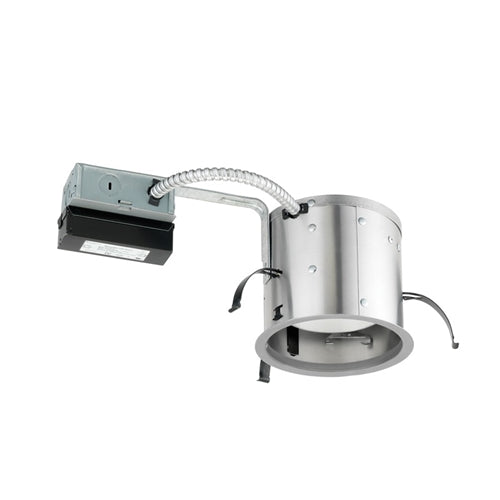

  • Dedicated LED, Air-Loc remodel housing with integral light engine
  • Shallow housing allows for fit in 2 x 6 construction
  • IC remodel housing for remodel application where back side of ceiling is not accessible
  • Installs through an opening in the ceiling from below
  • Secured in place by factory installed remodel springs
  • Can be completely covered with insulation
  • When used with supplied ALG kit, stops infiltration and exfiltration of air, reducing heating and air cooling costs
  • LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
  • 5 year limited warranty on LED components.
PRODUCT SPECIFICATIONS
LED Light Engine
  • LED array integrated to one piece high purity aluminum, thermally conductive housing provides uninterrupted heat transfer to ensure long life of the LED
  • Replaceable light engine mounts directly to housing and incorporates the latest generation, high lumen output LED array
  • LEDs are binned within a 3-step MacAdam Ellipse exceeding ENERGY STAR requirements for superior fixture to fixture color uniformity
  • 2700K, 3000K, 3500K, or 4000K color temperatures available
  • 90 CRI minimum.
Optical System
  • Computer-optimized reflector design with high reflectance white finish coupled with a high transmission diffusing lens conceals the LEDs and produces uniform aperture luminance
  • Wide flood (>70 degree) distribution shipped as standard with optional optic accessories available and sold separately.
Aesthetic Trim Selections
  • Compatible with wide selection of existing Juno trims
  • See PDF Specifications for trim selection
LED Driver
  • Choice of dedicated 120 volt (120) driver or universal voltage (MVOLT) drivers that accommodate input voltages from 120-277 volts AC at 50/60Hz
  • Power factor > 0.9 at 120V input
  • 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
  • Universal voltage drivers are dimmable with the use of most 0-10V wall box dimmers
  • For a list of compatible dimmers, see JUNOICLED-DIM
  • Mounted between the j-box and housing for easy access and cool operation.
Life Rated for 50,000 hours at 70% lumen maintenance.
Labels
  • UL listed for U.S. and Canada wet locations (covered ceilings)
  • Union made
  • UL and cUL.

downloads

PDF Download Download Wall Wash Trims PDF Specification
