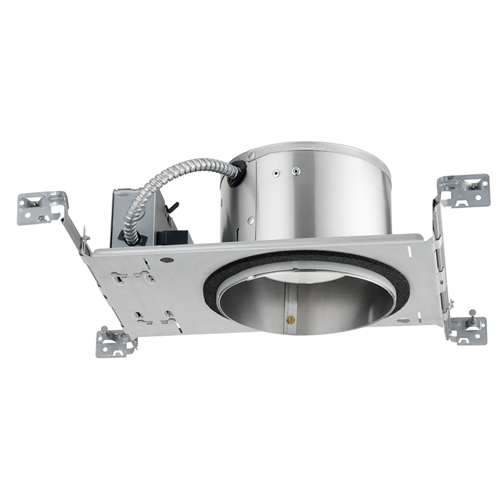

Juno IC22LED G4 06LM 30K 90CRI 120 FRPC Recessed Lighting 6" LED IC Type New Construction Housing 600 Lumens, 3000K Color Temperature, Dedicated Driver 120V

• Dedicated LED, Air-Loc� sealed new construction housing with integral light engine
• Shallow housing allows for fit in 2 x 6 construction
• Can be completely covered with insulation
• Fully sealed housing stops infiltration and exfiltration of air, reducing heating and air cooling costs without the use of additional gaskets
• LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
• 5 year limited warranty on LED components.

• No harmful ultraviolet or infrared wavelengths
• No lead or mercury
• Comparable light output to 65W BR30 incandescent

• LED array integrated to thermally conductive housing provides uninterrupted heat transfer to ensure long life of the LED
• Replaceable light engine mounts directly to housing and incorporates the latest generation, high lumen output LED array
• LEDs are binned within a 3-step MacAdam Ellipse exceeding ENERGY STAR� requirements for superior fixture to fixture color uniformity
• 2700K, 3000K, 3500K or 4100K color temperature available
• 90 CRI minimum.

• Choice of dedicated 120 volt driver or universal voltage driver that accommodates input voltages from 120-277 volts AC at 50/60Hz
• Power factor > 0.9 at 120V input
• 120 volt only dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
• Universal voltage driver is dimmable with the use of most 0-10V wall dimmers
• For a list of compatible dimmers, see JUNOICLED-DIM
• Mounted between the j-box and housing for easy access and cool operation.

• Rated for 50,000 hours at 70% lumen maintenance.

• ENERGY STAR� Qualified when used with select baffle and cone trims
• Certified to the high efficacy requirements of California T24 with select trims
• UL listed for U.S. and Canada through-branch wiring, damp locations
• Union made
• UL and cUL.

• All reports are based on published industry procedures; field performance may differ from laboratory performance.

Product specifications subject to change without notice.

Download Wall Wash Trims PDF Specification
