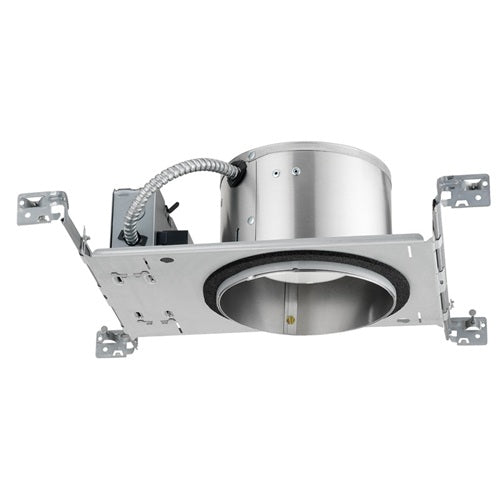

Juno IC22LED G4 06LM 27K 90CRI MVOLT ZT1 Recessed Lighting 6" LED IC Type New Construction Housing 600 Lumens, 2700K Color Temperature, Universal 120-277V, 0-10V, 1% Dim

• Dedicated LED, Air-Loc sealed new construction housing with integral light engine

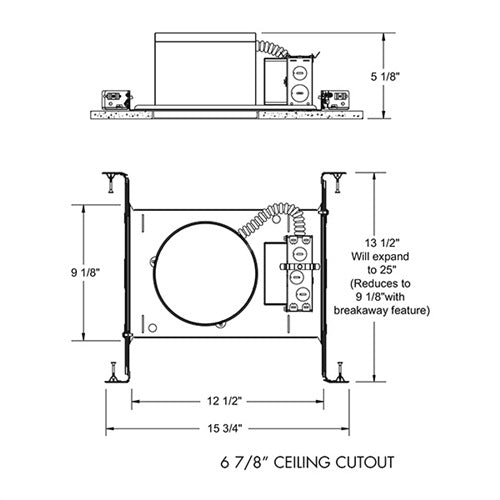

• Shallow housing allows for fit in 2 x 6 construction
• Can be completely covered with insulation
• Fully sealed housing stops infiltration and exfiltration of air, reducing heating and air cooling costs without the use of additional gaskets
• LED housing is designed to provide 50,000 hours of life and is compatible with many standard Juno trims
• 5 year limited warranty on LED components.

• LED array integrated to thermally conductive housing provides uninterrupted heat transfer to ensure long life of the LED
• Replaceable light engine mounts directly to housing and incorporates the latest generation, high lumen output LED array
• LEDs are binned within a 3-step MacAdam Ellipse exceeding ENERGY STAR requirements for superior fixture to fixture color uniformity
• 2700K, 3000K, 3500K or 4000K color temperature available
• 90 CRI minimum.

• Computer-optimized reflector design with high reflectance white finish coupled with a high transmission diffusing lens conceals the LEDs and produces uniform aperture luminance
• Deep regression of lens produces a low glare, efficient system that can produce over 600 lumens with select trims (see page 2 for details) using less than 9W
• Wide flood distribution (>70 degree) shipped as standard with optional optic accessories available and sold separately.

• Compatible with wide selection of existing Juno trims
• See PDF Specifications for trim selections

• Choice of dedicated 120 volt (120) driver or universal voltage (MVOLT) drivers that accommodate input voltages from 120-277 volts AC at 50/60Hz
• Power factor > 0.9 at 120V input
• 120 volt only dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
• Universal voltage drivers are dimmable with the use of most 0-10V wall dimmers
• For a list of compatible dimmers, see JUNOICLED-DIM
• Mounted between the j-box and housing for easy access and cool operation.

• ENERGY STAR Certified when used with select baffle and cone trims
• Certified to the high efficacy requirements of California T24 JA8-2016 with select trims
• UL listed for U.S. and Canada through-branch wiring, damp locations
• Union made
• UL and cUL.

Download Wall Wash Trims PDF Specification
