Juno Recessed Lighting IC25 (IC25) 5" Line Voltage IC Type Shallow Housing
Juno Recessed Lighting IC25 (IC25) 5" Line Voltage IC Type Shallow Housing
Regular price
Price:
$19.32
Regular price
Price:
Sale price
$19.32
Unit price
per
MODEL: Juno-IC25
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
Product Description

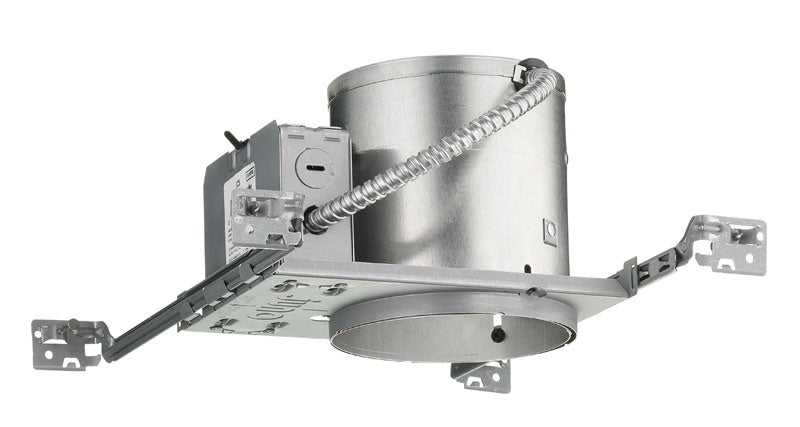

The shallow incandescent housing is ideal for applications where vertical installation space is limited. The energy-efficient housing features an Air-Loc® installation to stop infiltration and exfiltration of air, reducing heating and cooling costs. The IC-rated housing can also be completely covered with insulation.
The shallow incandescent housing is ideal for applications where vertical installation space is limited. The energy-efficient housing features an Air-Loc® installation to stop infiltration and exfiltration of air, reducing heating and cooling costs. The IC-rated housing can also be completely covered with insulation.
- Air-Loc® housing

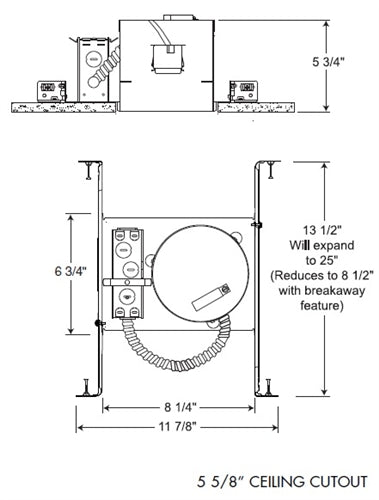

- 5-3/4-inch height for use in 2 x 6 construction
- Shadow-free, knife-edge trim design blends smoothly into the ceiling
- Floating socket with spring for quick trim attachment and consistent lamp positioning
- Housing is vertically adjustable to accommodate up to a 1-inch ceiling thickness
- Real Nail® 3 bar hangers: telescoping system with pre-installed removable nail for repositioning and integral T-bar mounting feature for suspended ceilings
- Pre-wired junction box with five 1/2-inch and one 3/4-inch knockouts with pryout slots, 4 non-metallic sheathed cable connectors, and ground wire
- Shadow-free, knife-edge trim design blends smoothly into the ceiling
- UL Listed, cUL Certified for through-branch wiring, maximum 8 No. 12 AWG branch circuit conductors: 4 in, 4 out
- Thermally protected against improper use of lamps or insulation
| Lamp | Lamp ratings based on trim selected |
| Socket | Medium base porcelain with
nickel-plated copper screw shell Floating socket with spring attaches to trim for installation. |
| Trims | Trims selection on pdf brochure |
| Labels | UL/cUL listed for through-branch
wiring, damp locations and IP Product thermally protected against improper use of lamps Union made UL and cUL Listed Trim No. 212N is wet location approved for covered ceiling applications Trims 275 and 276 are wet location approved for covered ceiling applications, when used with outdoor rated PAR lamps. |
| Testing | All reports are based on published industry procedures; field performance may differ from laboratory performance. |
Download PDF BrochureShare your knowledge of this product. Be the first to write a review »
