Home > Juno Lighting > Juno Recessed Lighting IC25R (IC25R) 5" Line Voltage IC Type Shallow Remodel Housing
Juno Recessed Lighting IC25R (IC25R) 5" Line Voltage IC Type Shallow Remodel Housing
Juno Recessed Lighting IC25R (IC25R) 5" Line Voltage IC Type Shallow Remodel Housing
Regular price
Price:
$25.05
Regular price
Price:
Sale price
$25.05
Unit price
per
MODEL: Juno-IC25R
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
Product Description

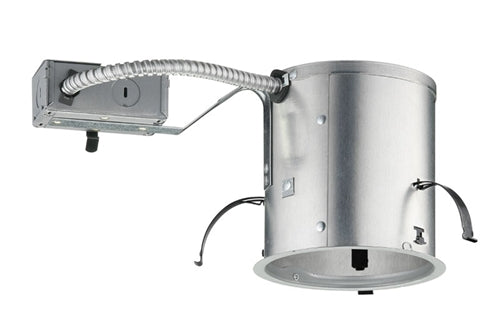

The remodel shallow housing is ideal for applications where the backside of the ceiling is not accessible and where vertical installation space is limited. The energy-efficient housing offers an IC rating to be completely covered with insulation and Air-Loc® installation to stop infiltration and exfiltration of air, reducing heating and cooling costs.
The remodel shallow housing is ideal for applications where the backside of the ceiling is not accessible and where vertical installation space is limited. The energy-efficient housing offers an IC rating to be completely covered with insulation and Air-Loc® installation to stop infiltration and exfiltration of air, reducing heating and cooling costs.
- Air-Loc housing

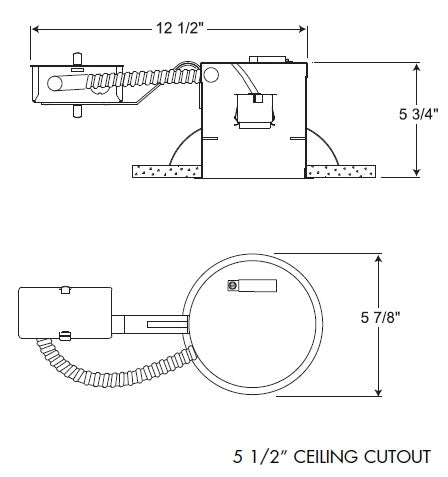

- 5-3/4-inch height for use in 2 x 6 construction
- Floating socket with spring for quick trim attachment and consistent lamp positioning
- Remodel springs accommodate up to a 1-1/8-inch ceiling thickness
- Pre-wired junction box includes five 1/2-inch knockouts with pryout slots, 4 non-metallic sheathed cable connectors, and ground wire
- Shadow-free, knife-edge trim design blends smoothly into the ceiling
- UL Listed, cUL Certified for through-branch wiring, maximum 4 No. 12 AWG branch circuit conductors: 2 in, 2 out
- Thermally protected against improper use of lamps or insulation
| Lamp | Lamp ratings based on trim selected |
| Socket | Medium base porcelain with
nickel-plated copper screw shell Floating socket with spring attaches to trim for installation. |
| Trims | Trims selection on pdf brochure |
| Labels | UL/cUL listed for through
branch-wiring, damp locations and IP Product thermally protected against improper use of lamps Union made UL and cUL Listed Trim No. 212N is wet location approved for covered ceiling applications Trims 275 and 276 are wet location approved for covered ceiling applications, when used with outdoor rated PAR lamps. |
| Testing | All reports are based on published industry procedures; field performance may differ from laboratory performance. |
Download PDF BrochureShare your knowledge of this product. Be the first to write a review »
