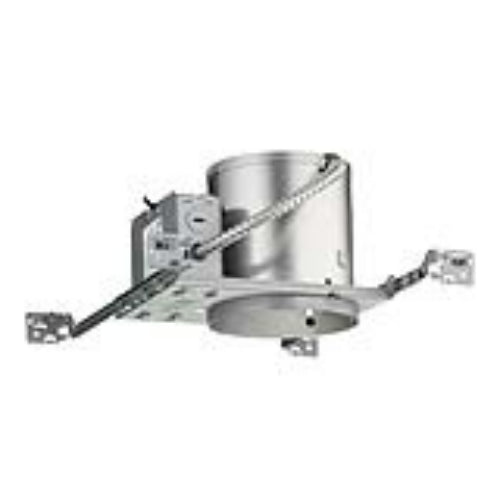

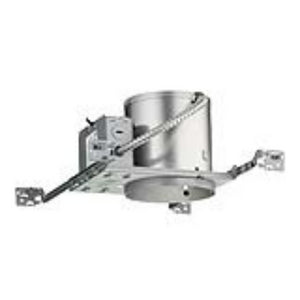

Juno Recessed Lighting IC25S (IC25 S) 5" Line Voltage IC Type Shallow Housing with smaller bar hangers

The shallow incandescent housing is ideal for applications where vertical installation space is limited. The energy-efficient housing features an Air-Loc® installation to stop infiltration and exfiltration of air, reducing heating and cooling costs. The IC-rated housing can also be completely covered with insulation.

• Air-Loc® housing

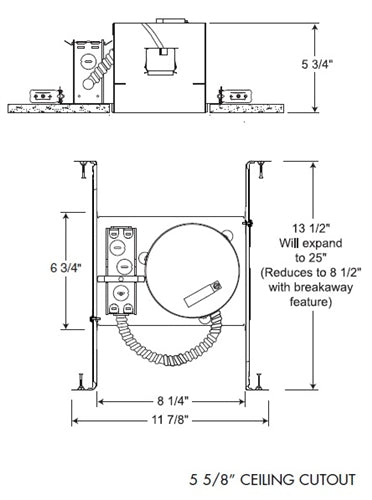

• 5-3/4-inch height for use in 2 x 6 construction
• Shadow-free, knife-edge trim design blends smoothly into the ceiling
• Floating socket with spring for quick trim attachment and consistent lamp positioning
• Housing is vertically adjustable to accommodate up to a 1-inch ceiling thickness
• Real Nail® 3 bar hangers: telescoping system with pre-installed removable nail for repositioning and integral T-bar mounting feature for suspended ceilings
• Pre-wired junction box with five 1/2-inch and one 3/4-inch knockouts with pryout slots, 4 non-metallic sheathed cable connectors, and ground wire
• Shadow-free, knife-edge trim design blends smoothly into the ceiling
• UL Listed, cUL Certified for through-branch wiring, maximum 8 No. 12 AWG branch circuit conductors: 4 in, 4 out\
• Thermally protected against improper use of lamps or insulation

Lamp	Lamp ratings based on trim selected
Socket	Medium base porcelain with nickel-plated copper screw shell Floating socket with spring attaches to trim for installation.
Trims	Trims selection on pdf brochure
Labels	UL/cUL listed for through-branch wiring, damp locations and IP Product thermally protected against improper use of lamps Union made UL and cUL Listed Trim No. 212N is wet location approved for covered ceiling applications Trims 275 and 276 are wet location approved for covered ceiling applications, when used with outdoor rated PAR lamps.
Testing	All reports are based on published industry procedures; field performance may differ from laboratory performance.
