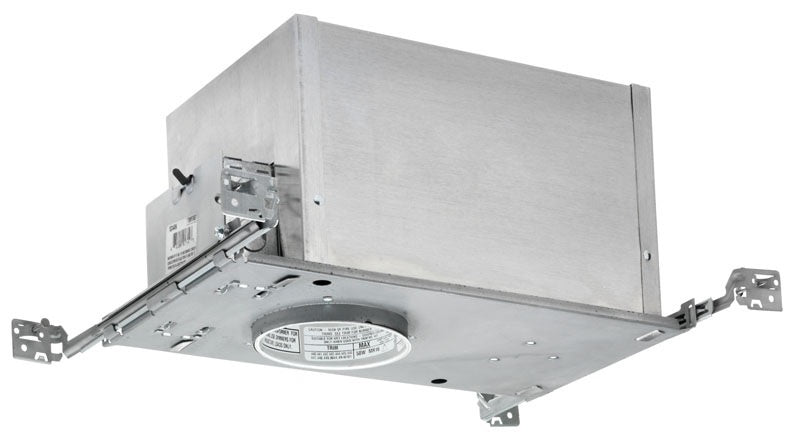

Juno Recessed Lighting IC44NG (IC44N G) 4" Low Voltage IC type New Construction Housing with Air-Loc Gasket

Description

IC Air-Loc® Housing with all 4” trims complies with IECC, Washington State and other state Energy Codes. Double wall construction. Energy efficient, sealed inner housing. Pre-installed ALG gasket on mounting frame for minimum infiltration and exfiltration of air, reducing heating and cooling costs.

Features & Benefits

• 4" Housing
• Ceramic bi-pin socket with aluminum heat shield

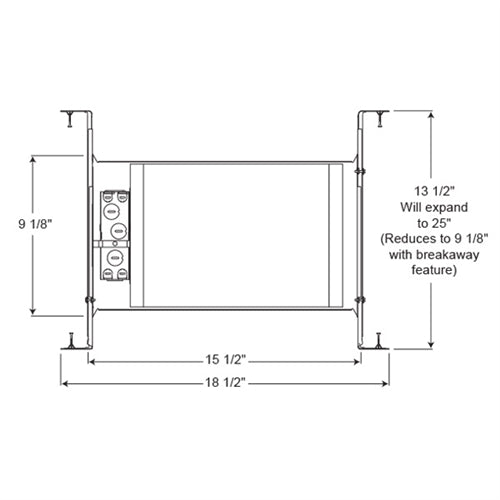

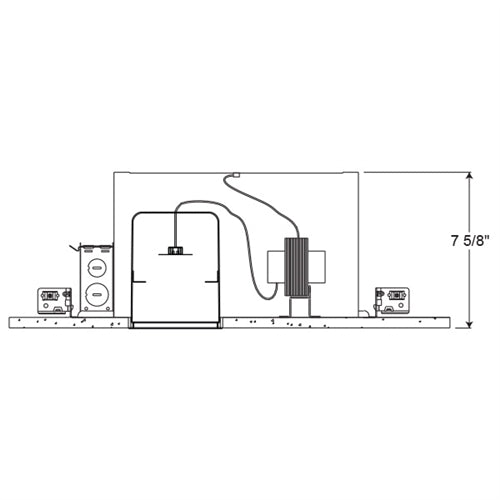

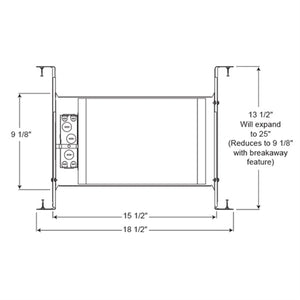

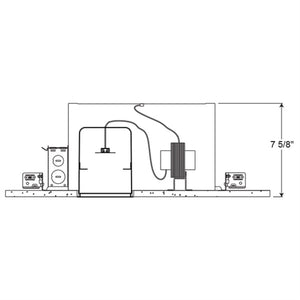

• Housing is vertically adjustable to accommodate up to a 1" ceiling thickness
• Aluminum housing is fully assembled for ease of installation
• 120V to 12V 50VA thermally protected magnetic transformer
• May be dimmed using dimmers specifically designed for magnetic transformers
• Real Nail® 3 bar hangers: telescoping system with pre-installed removable nail for easy repositioning of housing in joist construction
• Integral T-bar mounting feature for secure installation in suspended ceilings
• Patented break-away bars for tight joist spacing
• Bar hangers may be repositioned 90º
• Curved foot facilitates alignment with joist bottom
• Quick-Loc slot and oversized set screw lock fixture in position
• Pre-wired junction box with (6) 1/2" and (1) 3/4" knockouts with pryout slots, (4) non-metallic sheathed cable connectors, and ground wire
• Shadow-free, knife-edge trim design blends smoothly into the ceiling and allows architectural continuity with Aculux® trims
• UL Listed, C-UL/CSA certified for through-branch wiring, maximum (6) #12 AWG minimum 90° C branch circuit conductors (3 in, 3 out)
• Thermally protected against improper use of lamps
