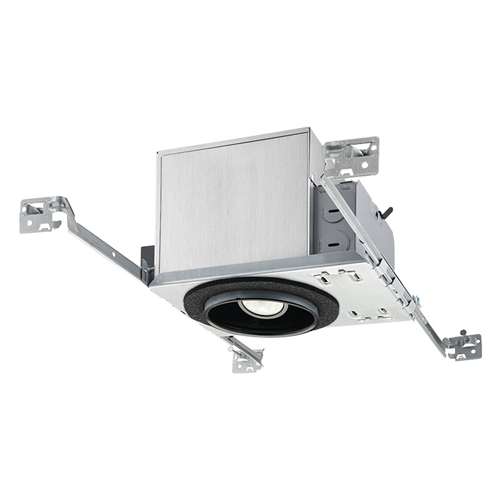

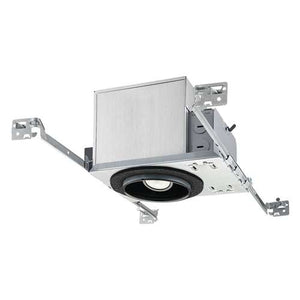

Juno IC4AL 10LM 30K 90CRI NFL 120 FRPC Recessed Lighting 4" Adjustable LED IC type New Construction Housing 1000 Lumens, 3000K Color Temp, Narrow Flood Beam, Dedicated Driver 120V

PRODUCT DESCRIPTION

• Patent pending dedicated LED, Air-Loc sealed new construction housing with integral internally adjustable light engine
• Double wall, shallow housing construction
• IC104AL series can be completely covered with insulation and installs in 2 x 6 construction
• Fully sealed housing stops infiltration and exfiltration of air, reducing heating and cooling costs without the use of additional gaskets
• LED housing is designed to provide 50,000 hours of life
• 5 year limited warranty on LED components.

PRODUCT SPECIFICATIONS

LED Light Engine

• LED array attached to cast aluminum sliding heatsink integrated directly with housing provides superior heat transfer to ensure long life of the LED
• Replaceable light engine mounts directly to inner housing assembly and incorporates the latest generation, high lumen output LED array
• LEDs are binned within a 3-step MacAdam Ellipse exceeding ENERGY STAR requirements for superior fixture to fixture color uniformity
• 2700K, 3000K, 3500K, or 4100K color temperatures available
• 90 CRI minimum.

Optics

• Three field interchangeable, TIR optics available in 18�, 30� and 40� beam angles
• Module can accommodate one 2-inch diameter beam control lens or filter
• Adjustable light engine module provides up to 35� vertical adjustment and 360� rotation.

Aesthetic Trim Selections Refer to PDF spec for trim selections

LED Driver

• Choice of dedicated 120 volt driver or universal voltage driver that accommodates input voltages from 120-277 volts AC at 50/60Hz
• Power factor > 0.9 at 120V input
• 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
• Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers
• For a list of compatible dimmers, click here

Life Rated for 50,000 hours at 70% lumen maintenance.

Labels

• ENERGY STAR Qualified
• Certified to the high efficacy requirements of California T24
• UL listed for U.S. and Canada for through-branch wiring, damp locations
• Union made
• UL and cUL.

Testing All reports are based on published industry procedures; field performance may differ from laboratory performance. Product specifications subject to change without notice.

Download Slope Ceiling Trims PDF Specification
