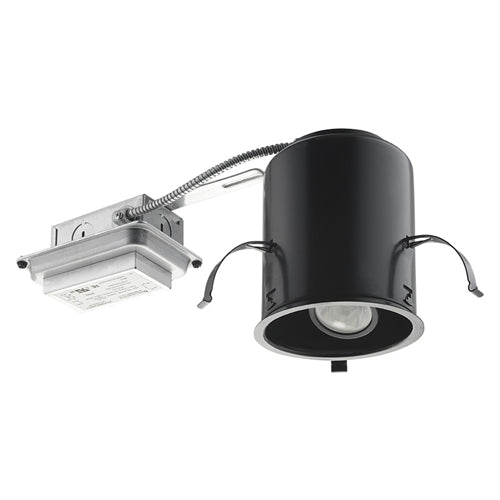

Juno Recessed Lighting IC4RAL-27K-F-U 4" Adjustable LED IC Type Remodel Housing 700 Lumens, 2700K Color Temperature, Flood Beam, Universal Driver 120-277V

PRODUCT DESCRIPTION

• Patent pending dedicated LED, Air-Loc remodel housing with integral internally adjustable light engine
• IC4RAL series can be completely covered with insulation and installs in shallow 2 x 6 construction
• TC4RAL series for use in non-insulated areas (If installed where insulation is present, the insulation must be pulled back 3" from all sides
  of the TC housing)
• Remodel housing for remodel application where back side of ceiling is not accessible
• Installs through an opening in the ceiling from below
• Secured in place by factory installed remodel springs
• LED housing is designed to provide 50,000 hours of life
• 5 year limited warranty on LED components.

PRODUCT SPECIFICATIONS

LED Light Engine

• LED array attached to cast aluminum sliding heatsink integrated directly with housing provides superior heat transfer to ensure long life of the LED
• Replaceable light engine mounts directly to inner housing assembly and incorporates the latest generation, high lumen output LED array
• LEDs are binned within a 3-step MacAdam Ellipse exceeding ENERGY STAR requirements for superior fixture to fixture color uniformity
• 2700K, 3000K, 3500K, or 4100K color temperatures available
• 90 CRI minimum.


Optics

• Three field interchangeable, TIR optics available in 18°, 30° and 40° beam angles
• Module can accommodate one 2-inch diameter beam control lens or filter
• Adjustable light engine module provides up to 35° vertical adjustment and 360° rotation.


Aesthetic Trim Selections

• Refer to PDF spec for trim selections


LED Driver

• Choice of dedicated 120 volt driver or universal voltage driver that accommodates input voltages from 120-277 volts AC at
  50/60Hz
• Power factor > 0.9 at 120V input
• 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
• Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers
• For a list of compatible dimmers, click here


Life Rated for 50,000 hours at 70% lumen maintenance.

Labels

• ENERGY STAR Qualified
• Certified to the high efficacy requirements of California T24
• UL listed for U.S. and Canada for through-branch wiring, damp locations
• Union made
• UL and cUL.


Testing All reports are based on published industry procedures; field performance may differ from laboratory performance. Product specifications subject to change without notice.
