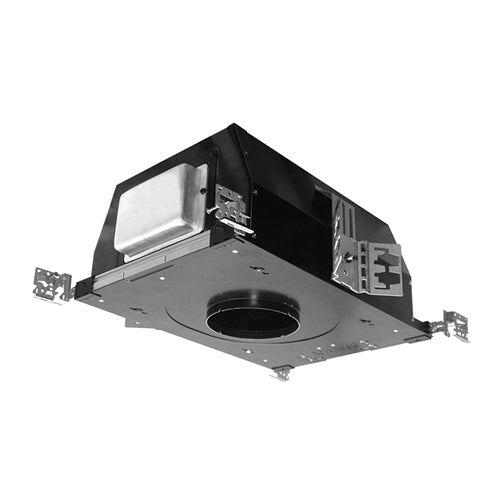

Juno Aculux IC522L-927-W-M Recessed Lighting 4 inch LED New Construction Round Adjustable IC Housing, 2200 Lumens, 2700K Color Temp, 90 CRI, Wide Flood Beam, 120-277V, DMX522/RDM

PRODUCT DESCRIPTION

Round recessed universal adjustable, downlight and wall wash LED luminaire produces up to 3200 delivered lumens. Fixture has 45° visual cutoff and features precision geared hot-aiming. Available in both IC and Non-IC rated configurations. IC rated luminaires are Air-Loc rated to ensure maximum energy savings and controls plenum sound transmission.

PRODUCT SPECIFCATIONS

LED Light Engine

• Consistent fixture to fixture color within 3-step MacAdam ellipse
• 2700K, 3000K, 3500K, or 4000K color temperatures are available with 80 CRI minimum
• 2700K and 3000K also available with 90 CRI minimum.


Modular Optics

• Available with 12° Spot, 24° Narrow Flood, 35° Flood and 50° wide flood field interchangeable optics
• Additional distributions of 20°, 30°, 40°, 45° and 60° FWHM can be achieved with the use of diffusing films and spot primary
  optic
• Patented (US Patent 8,950,911) auto-adjusting optic older maximizes luminaire efficiency by maintaining optimal LED optic position
• Accommodates up to two (2) additional 0.156” thick or (3) 0.125” thick beam control lenses and/or filters.


Adjustability

• Acu-Aim™ precision geared hot-aiming achieves 370° rotation, and up to 45° tilt (depending on trim and ceiling
  thickness)
• Optimized center beam optics translates light engine forward as it is aimed off nadir, ensuring maximum light and low brightness
• Black aiming mechanism preserves dark aperture.


Trims Style

• Self Flanged and Flush Mount reflectors utilize wire form spring retention for tight, secure fit to ceiling
• Self Flanged reflectors with polished or optional white painted flange
• For flush mount installations in drywall ceilings use the FMA5 flush mount adapter
• For flush mount installations in wood, stone, or tile ceilings the FMA5-SC*** must be used (specify ceiling thickness
  and adapter finish).

• See PDF Spec for trim selection.

LED Driver

• Seven (7) driver options available to accommodate 120-277V input and multiple control protocols
• For a list of compatible dimmers, refer to ACLXLED3-DIM
• Power Factor > 0.9
• Field replaceable from below or above ceiling.


Life Rated for 50,000 hrs at 70% lumen maintenance.

Warranty 5 years from date of purchase on LED components

Codes/Labels

• UL and cUL listed for through branch wiring, damp locations. Wet location listed with certain trims
• IC housings meet energy code Air Leakage requirements per ASTM E283
• ENERGY STAR® Qualified with select trims
• IC rated luminaires with 90CRI light engine are certified to high efficacy requirements of California T24 with select color temperatures and
  trims
• IC housings are rated for direct contact with insulation including spray foam insulation with an R-Value of 3.7 per inch or
  lesss (-L, -D, -M and nLight controls not compatible)
• Union made.


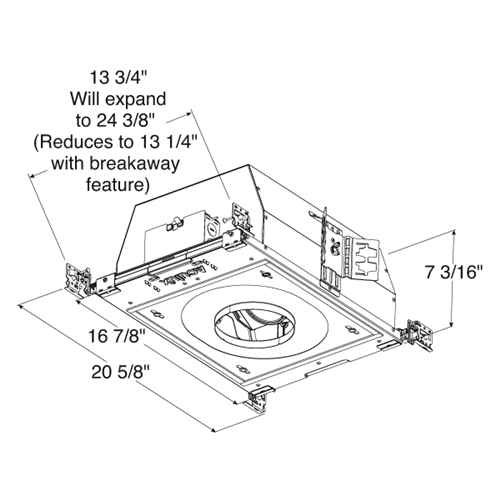

New Construction Mounting

• Features patented (US Patent 8,038,113) Pro-VI™ bar hanger system, permitting quick placement of housing with 24” on-center joists or suspended ceilings
• All fixtures also feature vertically adjustable mounting brackets (butterfly brackets)
• Centerline indicators on plaster frame and patented (US Patent 8,277,090) Tru-Line™ Platform featuring +/- ½” translation aids fixture alignment after installation, prior to drywall.


Junction Box

• IC fixtures rated for 4, non-IC rated for 8 No. 12 AWG 90° C through branch circuit conductors and includes (6) ½”, (1) ¾”, and (4) Non-metallic sheathed cable knock-outs
• Push-in electrical connectors for field connections.


Ceiling Thickness

• 1/2” – 7/8” ceiling standard
• For thicker ceilings, order CTA5-125 (7/8”-1 1/4”), CTA5-163 (1 1/4”- 1 5/8”) or CTA5-200 (1 5/8”– 2”)
• CTA5 not required for wood, stone, or tile flush mount applications.

ORDERING INFORMATION

PRODUCT DESCRIPTION

Round recessed universal adjustable, downlight and wall wash LED luminaire produces up to 3200 delivered lumens. Fixture has 45° visual cutoff and features precision geared hot-aiming. Available in both IC and Non-IC rated configurations. IC rated luminaires are Air-Loc rated to ensure maximum energy savings and controls plenum sound transmission.

PRODUCT SPECIFCATIONS

LED Light Engine

• Consistent fixture to fixture color within 3-step MacAdam ellipse
• 2700K, 3000K, 3500K, or 4000K color temperatures are available with 80 CRI minimum
• 2700K and 3000K also available with 90 CRI minimum.


Modular Optics

• Available with 12° Spot, 24° Narrow Flood, 35° Flood and 50° wide flood field interchangeable optics
• Additional distributions of 20°, 30°, 40°, 45° and 60° FWHM can be achieved with the use of diffusing films and spot primary
  optic
• Patented (US Patent 8,950,911) auto-adjusting optic older maximizes luminaire efficiency by maintaining optimal LED optic position
• Accommodates up to two (2) additional 0.156” thick or (3) 0.125” thick beam control lenses and/or filters.


Adjustability

• Acu-Aim™ precision geared hot-aiming achieves 370° rotation, and up to 45° tilt (depending on trim and ceiling
  thickness)
• Optimized center beam optics translates light engine forward as it is aimed off nadir, ensuring maximum light and low brightness
• Black aiming mechanism preserves dark aperture.


Trims Style

• Self Flanged and Flush Mount reflectors utilize wire form spring retention for tight, secure fit to ceiling
• Self Flanged reflectors with polished or optional white painted flange
• For flush mount installations in drywall ceilings use the FMA5 flush mount adapter
• For flush mount installations in wood, stone, or tile ceilings the FMA5-SC*** must be used (specify ceiling thickness
  and adapter finish).

• See PDF Spec for trim selection.

LED Driver

• Seven (7) driver options available to accommodate 120-277V input and multiple control protocols
• For a list of compatible dimmers, refer to ACLXLED3-DIM
• Power Factor > 0.9
• Field replaceable from below or above ceiling.


Life Rated for 50,000 hrs at 70% lumen maintenance.

Warranty 5 years from date of purchase on LED components

Codes/Labels

• UL and cUL listed for through branch wiring, damp locations. Wet location listed with certain trims
• IC housings meet energy code Air Leakage requirements per ASTM E283
• ENERGY STAR® Qualified with select trims
• IC rated luminaires with 90CRI light engine are certified to high efficacy requirements of California T24 with select color temperatures and
  trims
• IC housings are rated for direct contact with insulation including spray foam insulation with an R-Value of 3.7 per inch or
  lesss (-L, -D, -M and nLight controls not compatible)
• Union made.


New Construction Mounting

• Features patented (US Patent 8,038,113) Pro-VI™ bar hanger system, permitting quick placement of housing with 24” on-center joists or suspended ceilings
• All fixtures also feature vertically adjustable mounting brackets (butterfly brackets)
• Centerline indicators on plaster frame and patented (US Patent 8,277,090) Tru-Line™ Platform featuring +/- ½” translation aids fixture alignment after installation, prior to drywall.


Junction Box

• IC fixtures rated for 4, non-IC rated for 8 No. 12 AWG 90° C through branch circuit conductors and includes (6) ½”, (1) ¾”, and (4) Non-metallic sheathed cable knock-outs
• Push-in electrical connectors for field connections.


Ceiling Thickness

• 1/2” – 7/8” ceiling standard
• For thicker ceilings, order CTA5-125 (7/8”-1 1/4”), CTA5-163 (1 1/4”- 1 5/8”) or CTA5-200 (1 5/8”– 2”)
• CTA5 not required for wood, stone, or tile flush mount applications.

ORDERING INFORMATION
