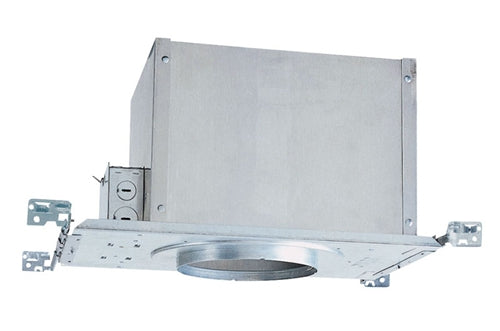

Juno Aculux IC62 Recessed Lighting 5-5/8 inch Line Voltage New Construction IC Open Aperture Housing
Juno Aculux IC62 Recessed Lighting 5-5/8 inch Line Voltage New Construction IC Open Aperture Housing
Ordering a large quantity?
Request a quote
View full details
description
Recessed PAR30/PAR38 downlight luminaire with 5-5/8” Alzak® deep cone aperture. Fixture has 50˚ visual cutoff to lamp and lamp image. Sealed Air-Loc housing eliminates leak-paths to ensure maximum energy savings and comfort. Also controls plenum sound transmission and keeps dust and insects from entering living space. IC rated housing for use in direct contact with insulation.
One 75W PAR30 or 100W PAR38 lamp.
Medium base porcelain socket with nickel plated copper screw shell.
White, Satin Chrome, or Classic Aged Bronze on steel Torsion spring retention for tight, secure fit to ceiling Beveled profile for clean ceiling interface without light leaks.
.040” aluminum reflector with clear, gold, black or haze finish 50˚ lamp and lamp image cut-off.
U.L. listed for direct contact with insulation, through branch wiring, damp locations and IP Meets Washington State Air Tight Requirements, 1995 CABO Model Energy Code Product thermally protected against improper use of lamps Union made CSA certified.
All reports are based on published industry procedures; field performance may differ from laboratory performance.
INSTALLATION
Telescoping, patent-pending Real Nail 3 system permits quick placement of housing anywhere within 24” O.C. joists or suspended ceilings Integral T-bar notch and clip secures housing in suspended ceiling grid – no accessory clips required 24” expansion stop allows quick placement of fixture in standard grid spacing Bars scored in two locations for fast, clean breaking, allowing housing installation in tight applications Bars captive to mounting frame Edge-mounted for extra strength Captive bugle-headed ring shank nail for quick one-step installation and easy removal with claw hammer for fixture relocation Quick-Loc slot and oversized locking set screw lock fixture in position Bar hanger foot contoured to align to bottom of construction joist Alternate mounting holes included.
Pre-wired junction box, U.L. listed/CSA certified for through-branch wiring, maximum 8 No. 12 AWG 90˚ C branch circuit conductors (4 in, 4 out) Junction box provided with removable access plates (5) 1⁄2” and (1) 3⁄4” knockouts, (4) Nonmetallic sheathed cable knock-outs with built-in strain reliefs and ground wire Knockouts equipped with pryout slots.
20-gauge die-formed galvanized steel plaster frame .032” die-formed aluminum outer housing with .064” formed aluminum inner housing -
Rough-in section (junction box, mounting frame, housing assembly and bar hangers) fully assembled for ease of installation.
